514C-02L
Paper Jams in the Output Tray
If there is paper loaded in the multi-purpose tray, remove it first, and close the tray. If the jammed paper cannot be removed easily, do not try to forcibly remove it but instead proceed to the next step.
1

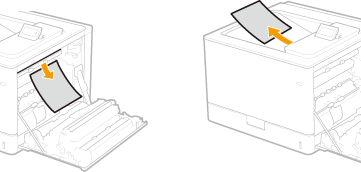

Open the right cover.
2
Gently pull out the paper.
Determine in which way you can pull out the jammed paper more easily, and try that way first.
Pull out the paper while holding it as horizontally as possible to prevent unfixed toner from falling.
3
Close the right cover.
NOTE
When the message is still displayed
Paper may be jammed in other locations. Check other locations, and remove jammed paper if any. If the message is still displayed, check whether the right cover is securely closed.
