Confirming Port Settings

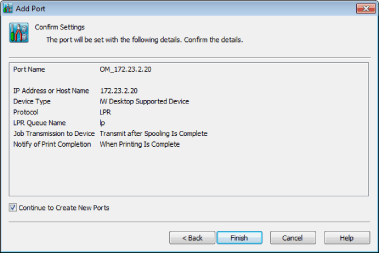

Confirm the settings of the added port in the [Confirm Settings] dialog box. Click [Next] in the [Port Details] dialog box to display the detailed information on the ports.
Clicking [Finish] adds the port to the port list in the main window.
|
Settings Display
|
The configured settings are displayed in a list. The following items are displayed.
Port name
IP address or host name
Device type
Protocol
LPR queue name
Port number
Transmission of the job to the device
Timing of the notification that the print finished
|
|
[Continue to Create New Ports]
|
This is displayed if a port has been added. This is displayed if the method for adding the port is set to [Discover Devices on Network].
The [Select Device] dialog box is displayed when selecting this check box and clicking [Finish]. The port can now be created.
|
|
[Finish]
|
The wizard to add a port finishes.
|
