Inserting Polygons

With Desktop Editor, you can insert a polygon into a document as an annotation.
1.

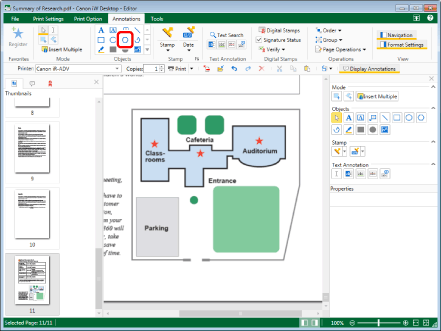

Click (Polygon) on the ribbon.
Or, click (Polygon) on the Details Window.
The properties of the polygon are displayed on the Details Window.
NOTE
If the Details Window is not displayed, see the following.
Displaying/Hiding the Details Window
This operation can also be performed with the tool buttons on the toolbar. If tool buttons are not displayed on the toolbar of Desktop Editor, see the following to display them.
Setting Buttons on Toolbars
Lists of Ribbon Commands/Toolbars
When you want to insert polygons multiple times, double-click (Polygon) on the Details Window. When you double-click the button, it is locked while being selected and polygons can be inserted multiple times.
Perform one of the following operations to cancel the button selection.
Click the selected button on the Details Window again
Click another button on the Details Window
Click a command on the ribbon
Press the [Esc] key on the keyboard.
You can click (Insert Multiple) on the ribbon to insert multiple annotations. For more information, see the following.
Inserting Multiple Annotations
2.
Configure the properties of the polygon.
[Line Style]
Select the line style you want to use from the list displayed when you click .
[Line Weight]
Set the line thickness. You can specify a line thickness from 0.25 point to 12.00 point. You can specify a line thickness in units of 0.25 point by using . If it is entered directly, you can enter up to two decimal places.
[Line Color]
Select the line color you want to use from the list displayed when you click . When you want to use a color that is not available in the list, select [More Colors].
[Shape Fill]
Select the color you want to use to fill from the list displayed when you click . When you want to use a color that is not available in the list, select [More Colors].
NOTE
If [No Line] is selected in [Line Style], drawn lines are displayed as a solid line in light blue.
If [Cloud (Small)] or [Cloud (Large)] is selected in [Line Style], solid lines are displayed for the frame of the annotation when you move a vertex.
If you select [More Colors] in [Line Color] or [Shape Fill], the [Color] dialog box is displayed and you can set a color that is not listed in [Line Color] or [Shape Fill].
You can also configure the properties of the annotation with the following commands.
(Line Style)
(Line Weight)
(Line Color)
(Fill)
If commands are not displayed on the ribbon of Desktop Editor, see the following to display them.
Adding Commands to Ribbons
This operation can also be performed with the tool buttons on the toolbar. If tool buttons are not displayed on the toolbar of Desktop Editor, see the following to display them.
Setting Buttons on Toolbars
Lists of Ribbon Commands/Toolbars
3.
Move the mouse pointer to the Work Window.
The shape of the mouse pointer changes to .
NOTE
To cancel the insertion process, do one of the following.
Click (Select Object) on the ribbon
Click  (Select Text) on the ribbon
Click  (Grab Mode) on the ribbon
Click the command selected on the ribbon again
Click (Select Object) on the Details Window
Click  (Select Text) on the Details Window
Click  (Grab Mode) on the Details Window
Click the selected button on the Details Window again
Press the [Esc] key on the keyboard
4.
Click the Work Window.
The position you clicked becomes the first vertex.
5.

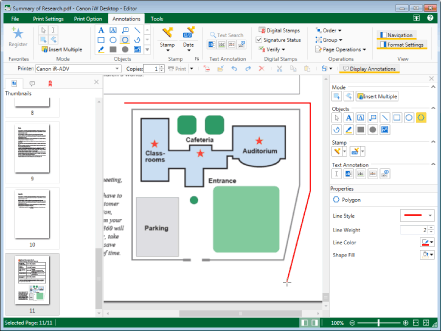

Click the location where you want to create a vertex.
Each time you click the mouse, the vertices are joined with straight lines.
NOTE
You can press the [BACKSPACE] key on the keyboard to cancel a vertex you just made.
You can create horizontal vertices, vertical vertices, and vertices at 45 degree angles by clicking the mouse pointer while holding down the [Shift] key on the keyboard.
You can press the [Esc] key on the keyboard to clear all the specified vertices.
6.
Create three or more vertices, and click near the first vertex you created.
Or, follow one of the steps described below.
Create three or more vertices, and press the [Enter] key on the keyboard
Create two or more vertices, and double-click the mouse when creating the final vertex.

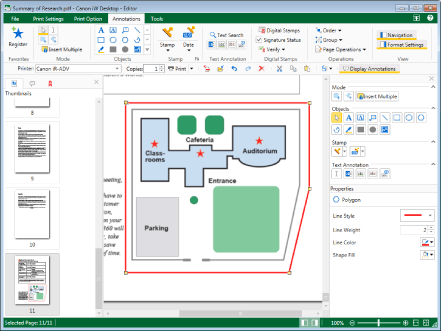

The polygon is created.
NOTE
The following occurs if you perform an operation that prevents additional vertices from being specified, such as clicking somewhere other than the Work Window while drawing.
If you have specified three or more vertices, the polygon is fixed.
If you have specified two or fewer vertices, the specified vertices are cleared.
You can drag the handle of a vertex to move that vertex. For more information, see the following.
Resizing Annotations
7.
Click on the Work Window outside the polygon you inserted to deselect the polygon.
