When the message <Replace toner cartridge.> is displayed on the touch panel display, press on the bottom right and replace the toner cartridge.
on the bottom right and replace the toner cartridge.
When the toners run out completely and prints can no longer be made, a screen with instructions on how to replace the toner cartridge appears on the touch panel display. Follow the procedure described below to replace the toner cartridge.
If you press [Close], you can continue operations, such as setting modes and scanning originals, even if you do not replace the toner cartridge immediately.
 WARNING |
|
Do not burn or throw used toner cartridges into open flames, as this may cause the toner to ignite, resulting in burns or a fire.
If you accidentally spill or scatter toner, carefully gather the toner particles together or wipe them up with a soft, damp cloth in a way that prevents inhalation. Never use a vacuum cleaner that does not have safeguards against dust explosions to clean up spilled toner. Doing so may cause a malfunction in the vacuum cleaner, or result in a dust explosion due to static discharge.
|
|
CAUTION |
|
Keep toner out of the reach of small children.
If toner is ingested, consult a physician immediately.
If toner gets onto your hands or clothing, wash it off immediately with cold water. Washing it off with warm water will set the toner, and make it impossible to remove the toner stains.
|
|
IMPORTANT
|
|
Use only toner cartridges intended for use with this machine.
For information on the "supported Canon genuine toner," see "Consumables."
Do not replace toner cartridges until the message prompting you to do so appears.
You can replace a toner cartridge while the machine is printing.
|
|
NOTE
|
|
When the message <Replace toner cartridge.> appears, approximately 900 pages can be printed.
Complete instructions on how to replace the toner cartridge can be accessed by pressing [Previous] or [Next] on the touch panel display.
If toner runs out during a print job, the remaining prints are made after you replace the toner cartridge.
After replacing toner cartridges, if printed gradation and density are different from the gradation and density printed before you replaced the toner cartridges, perform [Auto Adjust Gradation] in [Adjustment/Maintenance] (Settings/Registration). (See "Automatic Gradation Adjustment.")
|
1.
Press [].
].|
NOTE
|
|
If a screen with instructions on how to replace the toner cartridge appears on the touch panel display, this step is not necessary.
|
2.
Open the toner replacement cover, by holding the left and right handles.
|
NOTE
|
|
If equipment such as finisher is attached, open the cover by holding the right handle.
|
3.

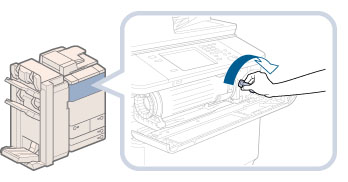

Turn the locking lever to the right until it stops.
|
IMPORTANT
|
|
Make sure to turn the locking lever to the right until it stops. (Otherwise, you may not be able to remove the toner cartridge.)
|
4.
Remove the toner cartridge, supporting it with both hands.
 WARNING |
|
Do not burn or throw used toner cartridges into open flames, as this may cause the toner remaining inside the cartridges to ignite resulting in burns or a fire.
|
|
IMPORTANT
|
|
Never touch the tip of the toner cartridge or subject it to shock by hitting it. Doing so may cause the toner cartridge to leak.
 |
5.
Prepare the new toner cartridge.
6.
Twist the red protective cap of the new toner cartridge in the direction of the arrow to remove it.
7.
Insert the new toner cartridge.
Align the end of the toner cartridge with the toner supply port as shown by the arrow in the illustration below, and insert the toner cartridge straight into the machine.
|
IMPORTANT
|
|
Only use toner cartridges intended for use in this machine. You cannot insert the toner cartridge not intended for use in this machine, because the shape of the toner cartridge does not match the toner supply port of the machine.
Insert the toner cartridge horizontally into the machine. Otherwise, the toner cartridge may leak.
|
8.
Turn the locking lever to the left until it stops, and close the toner replacement cover.
The toner confirmation screen is displayed.
|
CAUTION |
|
When closing the toner replacement cover, be careful not to get your fingers caught, as this may result in personal injury.
|
|
IMPORTANT
|
|
Make sure to turn the locking lever to the left until it stops. (Otherwise, you may not be able to close the toner replacement cover.)
|
