Setting the Resolution
You can specify the resolution at which to scan the original. Scanning at high quality increases the file size, but ensures details are preserved in the final image.
As an example, the procedure for selecting the Advanced Space as the storage location is explained in this section.
|
IMPORTANT
|
|
This mode is only available for storing files in the Advanced Space, the Advanced Space of another imageRUNNER ADVANCE machine on the network, or memory media.
|
1.
Press [Scan and Store] → [Advanced Box].
2.
Select the desired space → select the destination directory → press [Scan].
3.

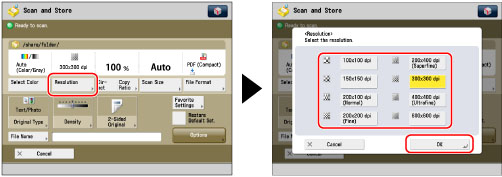

Press [Resolution] → select the desired resolution → press [OK].
|
IMPORTANT
|
|
For information on the modes which cannot be set in combination with this mode, see "Unavailable Combination of Functions."
|
|
NOTE
|
|
If you want to use the following resolution settings to scan a colour image, it is necessary to expand the memory capacity of the machine with the Additional Memory Type D (512MB).
200 x 400 dpi
400 x 400 dpi
600 x 600 dpi
If you are storing files in a mail box, the resolution is fixed to 600 dpi.
|
