Document Insertion Unit-K1 (Optional)

If a paper jam occurs inside the Document Insertion Unit-K1, a screen prompting you to remove the jammed paper appears on the touch panel display. Follow the procedure described below, while referring to the directions that appear on the touch panel display, to remove the jammed paper.
IMPORTANT
The part of the Document Insertion Unit-K1 may interfere with the finisher when clearing jams. Lift up the insertion unit before removing jams from the finisher.
NOTE
The following illustration indicates the location of the paper jam. Please refer to it to remove the jammed paper.
*Front Cover
The Document Insertion Unit-K1 is an optional product.

1.
Remove the paper that is not jammed from the Document Insertion Unit-K1.
2.
Remove any paper jammed in the upper cover (I-I1) of the document insertion unit.
1. Open the upper cover (I-I1) of the document insertion unit.
2. Remove any jammed paper.
3.
Remove any paper jammed in the guide (I-I2).
1. Open the guide (I-I2).
2. Remove any jammed paper.
4.
Close the guide (I-I2) and the upper cover (I-I1).
1. Close the guide (I-I2).
2. Close the upper cover (I-I1).
CAUTION
When closing the guide and upper cover, be careful not to get your fingers caught, as this may result in personal injury.
5.
Open the document insertion unit.
6.
Remove any paper jammed in the guide (I-13).
1. Open the guide (I-13).
2. Remove any jammed paper.
7.
Close the guide (I-13) and the document insertion unit.
1. Close the guide (I-13).
2. Close the document insertion unit.
CAUTION
When closing the guide and the document insertion unit, be careful not to get your fingers caught, as this may result in personal injury.
8.

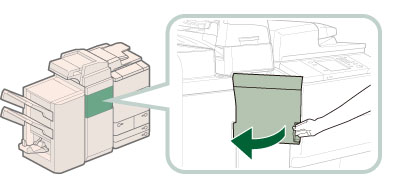

Open the front cover of the Document Insertion Unit-K1.
9.
Open the guide (I-A1).
CAUTION
When opening the guide (l-A1), be careful not to get your fingers caught, as this may result in personal injury.
10.
Remove any paper jammed in the guide (I-A1).
1. Remove any jammed paper.
2. Close the guide (I-A1).
CAUTION
When closing the guide, be careful not to get your fingers caught, as this may result in personal injury.
11.
Open the guide (I-A2).
CAUTION
When opening the guide (l-A2), be careful not to get your fingers caught, as this may result in personal injury.
12.
Turn the dial (I-A3), and remove any jammed paper.
1. Turn the dial (I-A3) in the direction of the arrow (counterclockwise).
2. Remove any jammed paper.
13.
Close the guide (I-A2) and the front cover.
1. Close the guide (I-A2).
2. Close the front cover.
CAUTION
When closing the guide and the cover, be careful not to get your fingers caught, as this may result in personal injury.
NOTE
If the paper jam message is displayed even after the paper jam is cleared, check whether there is any paper left by opening the entrance guide.
14.
Reload the paper into the document insertion unit.
15.
Follow the instructions on the screen.
NOTE
The screen indicating the directions on how to clear the paper jam is displayed repeatedly until the paper jam is cleared.
