Professional Puncher Integration Unit-B1 (Optional)
If a paper jam occurs inside the Professional Puncher Integration Unit-B1, a screen prompting you to remove the jammed paper appears on the touch panel display. Check the location of the paper jam, and follow the procedure described below, while referring to the directions that appear on the touch panel display, to remove the jammed paper.
 CAUTION |
|
Do not place objects in the open space inside the Professional Puncher Integration Unit-B1, as this may cause the machine to malfunction.
 |
|
NOTE
|
|
The following illustration indicates the location of the paper jam. Please refer to it to remove the jammed paper.
 *Front Cover
The Professional Puncher Integration Unit-B1 is an optional product.
|
1.

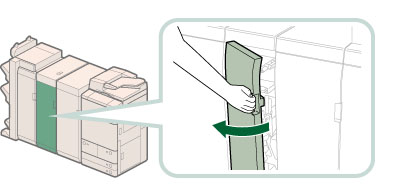

Open the front cover of the Professional Puncher Integration Unit-B1.
2.
Remove any jammed paper from the guide (R-A).
 |
1. Lift up the guide (R-A) until it clicks into place. |
2. Remove any jammed paper. |
|
3. Close the guide (R-A) until it clicks into place. |
|
CAUTION |
|
When closing the guide, be careful not to get your fingers caught, as this may result in personal injury.
|
3.
Turn the lever of the guide (R-B1), and open the guide (R-B1).
 |
1. Turn the lever of the guide (R-B1) to the right. |
2. Open the guide (R-B1) until it clicks into place. |
4.
Remove any jammed paper.
5.
Turn the lever of the guide (R-B1) to the left until it clicks into place.
|
CAUTION |
|
When closing the guide, be careful not to get your fingers caught, as this may result in personal injury.
|
6.
Open the guide (R-B2) until it clicks into place.
7.
Remove any jammed paper.
8.
Close the guide (R-B2) until it clicks into place.
|
CAUTION |
|
When closing the guide, be careful not to get your fingers caught, as this may result in personal injury.
|
9.
Close the front cover of the Professional Puncher Integration Unit-B1.
|
CAUTION |
|
When closing the cover, be careful not to get your fingers caught, as this may result in personal injury.
|
10.
Follow the instructions on the screen.
|
NOTE
|
|
The screen indicating the directions on how to clear the paper jam is displayed repeatedly until the paper jam is cleared.
|
