Copying Effectively with the Cascade Copy Printer (Cascade Copying)

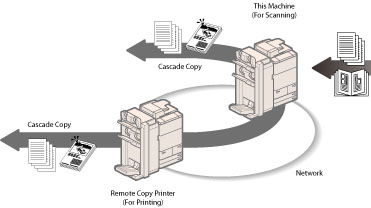

If a cascade copy printer (imageRUNNER ADVANCE 8205/8295/8285) is connected to the network you are using, you can copy using the machine and the cascade copy printer. By printing originals scanned by the machine from the machine and a cascade copy printer at the same time, you can efficiently process large copy jobs.

IMPORTANT
The Cascade Copy mode can be used among the machines of the same model (imageRUNNER ADVANCE 8205/8295/8285). You cannot use this mode with a different series machine. If [Use IPv4] is set to 'Off', you cannot set the Cascade Copy mode. (See "TCP/IPv4 Settings.") To specify a printer as the cascade copy printer, you must register the printer in advance. (See "Setting a Printer for Cascade Copying.") In addition, you must set the same Department ID and PIN as the machine for the printer to be registered. (See "Registering the Department ID, PIN, and Page Limit.")

IMPORTANT

The Cascade Copy mode can be used among the machines of the same model (imageRUNNER ADVANCE 8205/8295/8285). You cannot use this mode with a different series machine.

If [Use IPv4] is set to 'Off', you cannot set the Cascade Copy mode. (See "TCP/IPv4 Settings.")

To specify a printer as the cascade copy printer, you must register the printer in advance. (See "Setting a Printer for Cascade Copying.") In addition, you must set the same Department ID and PIN as the machine for the printer to be registered. (See "Registering the Department ID, PIN, and Page Limit.")

Press [Copy].

Press [Options] → [Cascade Copy].

Select the printer to use as the cascade copy printer → select [On] for <Pass Remaining To Partner Dev. If Error> → press [OK].

[On]: If an error occurs on the machine or the selected cascade copy printer and printing is suspended, the remaining prints are passed to the machine that is operating normally.

Press [Off] if you do not want to pass the remaining prints when an error occurs.

To check the detailed information for the selected cascade copy printer, press [Details].

IMPORTANT
The setting for [Pass Remaining To Partner Dev. If Error] is only valid when [Finishing] is set.

NOTE
Even if you select [On] for [Pass Remaining To Partner Dev. If Error], the remaining prints will not be passed in the following cases: If the originals for cascade copy are being scanned. If you are using [Add Cover] and [Insert Sheets] in combination when performing cascade copy. If you are using [Different Size Originals], Automatic Paper Selection, and [2-Sided] in combination when performing cascade copy. If cascade copying is stopped on the imageRUNNER ADVANCE machine that the remaining prints were passed to. If an error occurs on the imageRUNNER ADVANCE machine that the remaining prints were passed to. If the cascade copy job is near completion. If the scanning time of the originals for the cascade copy job is long. If you are using the Copy Set Numbering mode in combination with the Cascade Copy mode. If you select [On] for [Pass Remaining To Partner Dev. If Error], printing is not performed by the imageRUNNER ADVANCE machine in which the error occurred, even after the machine is restored.

NOTE

Even if you select [On] for [Pass Remaining To Partner Dev. If Error], the remaining prints will not be passed in the following cases:

If the originals for cascade copy are being scanned.

If you are using [Add Cover] and [Insert Sheets] in combination when performing cascade copy.

If you are using [Different Size Originals], Automatic Paper Selection, and [2-Sided] in combination when performing cascade copy.

If cascade copying is stopped on the imageRUNNER ADVANCE machine that the remaining prints were passed to.

If an error occurs on the imageRUNNER ADVANCE machine that the remaining prints were passed to.

If the cascade copy job is near completion.

If the scanning time of the originals for the cascade copy job is long.

If you are using the Copy Set Numbering mode in combination with the Cascade Copy mode.

If you select [On] for [Pass Remaining To Partner Dev. If Error], printing is not performed by the imageRUNNER ADVANCE machine in which the error occurred, even after the machine is restored.

IMPORTANT
For information on the modes which cannot be set in combination with this mode, see "Unavailable Combination of Functions." If you use the Superimpose Image mode with the Cascade Copy mode, it is necessary to register the same image form with the same name in both the machine and the cascade copy printer in advance. If the same image form with the same name is not registered in both machines, the job is cancelled. If multiple image forms with the same name as the image form in the machine are registered in the cascade copy printer, different images may be used for Superimpose Image. To directly connect the machine and cascade copy printer using a crossover patch cord, you must specify the following settings for [Ethernet Driver Settings]. (See "Interface Settings.") <Auto Detect>: [Off] <Communication Mode>: [Full Duplex] <Ethernet Type>: 100Base-TX

IMPORTANT

For information on the modes which cannot be set in combination with this mode, see "Unavailable Combination of Functions."

If you use the Superimpose Image mode with the Cascade Copy mode, it is necessary to register the same image form with the same name in both the machine and the cascade copy printer in advance. If the same image form with the same name is not registered in both machines, the job is cancelled. If multiple image forms with the same name as the image form in the machine are registered in the cascade copy printer, different images may be used for Superimpose Image.

To directly connect the machine and cascade copy printer using a crossover patch cord, you must specify the following settings for [Ethernet Driver Settings]. (See "Interface Settings.")

<Auto Detect>: [Off]

<Communication Mode>: [Full Duplex]

<Ethernet Type>: 100Base-TX

NOTE
The Select Paper screen for the machine is displayed, not the Select Paper screen for the cascade copy printer. To enable this mode, select paper sources in the machine and the cascade copy printer loaded with the same paper. The number of copies are split in half between the machine and the selected cascade copy printer. If an odd number of copies is set, the machine prints one more copy than the cascade copy printer. If you want to use the Cascade Copy mode in combination with other copy modes, when you set a copy mode that is not supported for use with this mode, an error message is displayed at the time the cascade copy job is performed. When setting [Finishing], check whether finishers are attached to the machine and the cascade copy printer. However, if different finishers are attached to the machine and cascade copy printer, only [Collate] and [Group (Same Pages)] are valid for [Finishing]. You cannot reserve a cascade copy job while a cascade copy job is being performed. If an error occurs in the cascade copy printer while a cascade copy job is being performed, an error message is displayed in the bottom section of the touch panel display on both the machine and the cascade copy printer. For instructions on cancelling cascade copying, see "Checking and Cancelling Copy/Print Jobs ."

NOTE

The Select Paper screen for the machine is displayed, not the Select Paper screen for the cascade copy printer. To enable this mode, select paper sources in the machine and the cascade copy printer loaded with the same paper.

The number of copies are split in half between the machine and the selected cascade copy printer. If an odd number of copies is set, the machine prints one more copy than the cascade copy printer.

If you want to use the Cascade Copy mode in combination with other copy modes, when you set a copy mode that is not supported for use with this mode, an error message is displayed at the time the cascade copy job is performed.

When setting [Finishing], check whether finishers are attached to the machine and the cascade copy printer. However, if different finishers are attached to the machine and cascade copy printer, only [Collate] and [Group (Same Pages)] are valid for [Finishing].

You cannot reserve a cascade copy job while a cascade copy job is being performed.

If an error occurs in the cascade copy printer while a cascade copy job is being performed, an error message is displayed in the bottom section of the touch panel display on both the machine and the cascade copy printer.

For instructions on cancelling cascade copying, see "Checking and Cancelling Copy/Print Jobs ."
