Gutter
This mode enables you to make prints with the entire image shifted by a designated width to the left, right, top, or bottom in order to create a gutter on the prints. Use this mode to make prints ready for placement in ring binders.
|
Left Margin Selected
|
 |
Right Margin Selected
|
|
Top Margin Selected
|
|
Bottom Margin Selected
|
|
 |
 |
 |
 |
 |
|
IMPORTANT
|
|
This mode can be used only for printing a file stored in a mail box.
|
1.
Press [Access Stored Files] → [Mail Box].
_udoc_en_US/b_udoc_004_02_a_C.jpg)
2.
Select the desired Mail Box → select the desired file → press [Print].
_udoc_en_US/b_udoc_017_02_b_C.jpg)
3.
Press [Change Print Settings].
4.

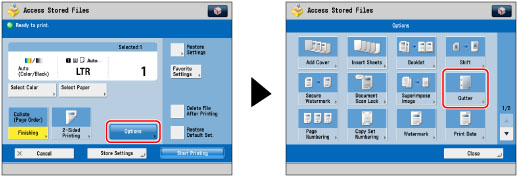

Press [Options] → [Gutter].
_udoc_en_US/b_udoc_026_09_d_C.jpg)
To change the paper source, see "Paper Selection."
5.
Select the gutter position.
_udoc_en_US/b_udoc_026_09_e_C.jpg)
6.
Press [Front Side] or [Back Side] → press [-] or [+] to set the gutter width → press [OK].
Press [-] or [+] to set the gutter width.
|
NOTE
|
||||||
|
If you are using the Gutter and 2-Sided Printing modes together and printing a file that already has a gutter, set the Gutter mode for the back only.
If you are using the Gutter and 2-Sided Printing modes together and printing a file that does not have a gutter, set the Gutter mode for both the front and back.
If you enter a value other than 0, you can switch between positive and negative gutter width by pressing [±].
|
7.
Press [Close].
|
IMPORTANT
|
|
For information on the modes which cannot be set in combination with this mode, see "Unavailable Combination of Functions."
|
