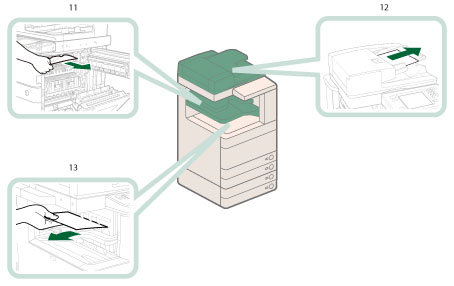

Locations of Paper Jams
Paper jams may occur in the following parts of the machine. See the applicable section to clear the paper jam.
1. |
Paper Drawer |
2. |
Main Unit |
3. |
Cassette Feeding Unit-AD2 (Optional) |
4. |
Paper Deck Unit-B2 (Optional) |
5. |
Copy Tray-J1 (Optional) |
6. |

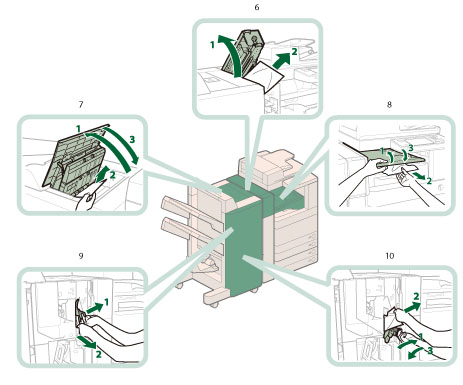

External 2 Hole Puncher-B2/External 2/4 Hole Puncher-B2/External 4 Hole Puncher-B2 |
7. |
Inside the Top Cover of the Finisher |
8. |
Buffer Pass Unit-G1 |
9. |
Inside the Front Cover |
10. |
Saddle Stitcher Unit |
