Copy Set Numbering
This mode enables you to print a five-digit copy set number in transparent characters on prints.
You can manually set the start number for printing copy set numbers.
|
IMPORTANT
|
|
This mode can be used only for printing a file stored in a mail box.
|
1.
Press [Access Stored Files] → [Mail Box].
_udoc_en_UV/b_udoc_004_02_a_C.jpg)
2.
Select the desired Mail Box → select the desired file → press [Print].
_udoc_en_UV/b_udoc_017_02_b_C.jpg)
3.
Press [Change Print Settings].
4.

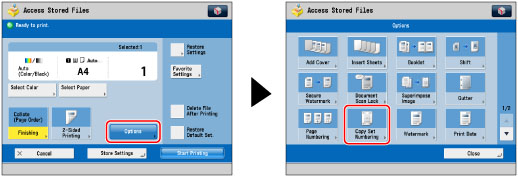

Press [Options] → [Copy Set Numbering].
_udoc_en_UV/b_udoc_026_11_d_C.jpg)
5.
Set the image orientation and print position.
Orientation:
|
[Upright Image]:
|
Prints the image upright on the paper.
|
|
[Sideways Image]:
|
Prints the image sideways on the paper.
|
|
Upright Image
|
Sideways Image
|
|||
|
|
|
 |
|
Press [Full Surface] to print the copy set number repeatedly over the surface of the output.
Press [Numbers in 5 Locations] to select all five print positions.
|
NOTE
|
|
If you set <Number Option> to 'On' in [Copy Set Numbering Option Settings], [Full Surface] and [Numbers in 5 Locations] are grayed out and cannot be selected. (See "Copy Set Numbering Options.")
If you set any two of [Page Numbering], [Watermark], or [Print Date] to print in the same position, a confirmation message appears when you press
 (Start). |
You can press [Set Details] to adjust the printing position.
To adjust the printing position, press [X] or [Y] → adjust the printing position with [-] or [+] → press [OK].
6.
Specify the print settings for the copy set numbers.
Press the <Size> drop-down list → select the size of the copy set numbers.
|
NOTE
|
|
If you set <Number Option> to 'On' in [Copy Set Numbering Option Settings], you can set the copy set number size to [10.5 pt], [12.0 pt], or [14.0 pt]. (See "Copy Set Numbering Options.")
|
Press the <Color> drop-down list → select the colour of the page numbers.
Press [Light] or [Dark] for <Density> to adjust the density.
Enter the starting number using
-
(numeric keys).
- (numeric keys).7.
Press [OK] → [Close].
|
IMPORTANT
|
|
For information on the modes which cannot be set in combination with this mode, see "Unavailable Combination of Functions."
Printing performance may not be optimal, depending on the file content and combination of settings.
If you use [Copy Set Numbering] with [Add Cover], [Insert Sheets], or [Job Separator], the watermark will not be printed on the inserted pages.
|
|
NOTE
|
|
The Copy Set Numbering mode cannot be used with files including images with resolutions of less than 600 x 600 dpi.
If the copy set number has fewer than five digits, the machine prints it as follows:
Example: If the copy set number is 10, "00010" is printed. |
