External 2 Hole Puncher-B2/External 2/3 Hole Puncher-B2/External 2/4 Hole Puncher-B2
Check the location of the paper jam, and follow the procedure described below, while referring to the directions that appear on the touch panel display, to remove the jammed paper.
1.

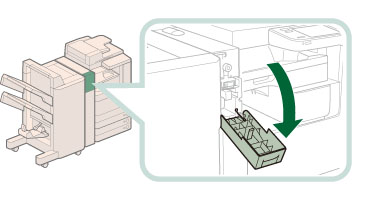

Open the front cover of the puncher waste tray.
2.

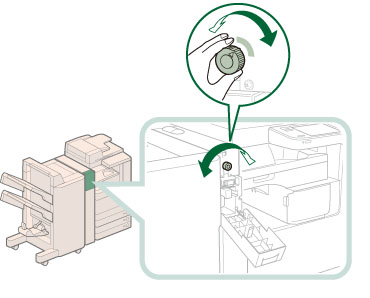

Align the pointed notch on the knob within the shaded region (
).
).
3.

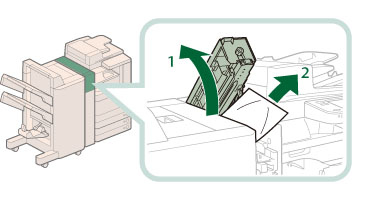

Remove any paper jammed from the top cover of the puncher.
 |
1. Open the top cover of the puncher. |
2. Remove any jammed paper.If you cannot remove the jammed paper, remove it from below.
|
4.

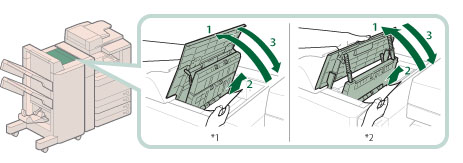

Open the top cover of the finisher, and remove any jammed paper.
 |
|
*1 Booklet Finisher-J1
*2 Staple Finisher-J1
|
1. Open the top cover of the finisher. |
2. Remove any jammed paper. |
3. Close the top cover of the finisher. |
 CAUTION |
|
When closing the cover, be careful not to get your fingers caught, as this may result in personal injury.
|
5.

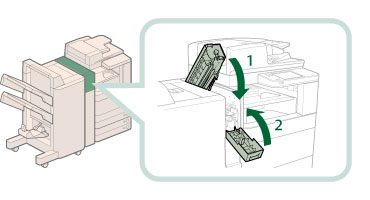

Close the top cover of the puncher and the front cover of the puncher waste tray.
|
CAUTION |
|
When closing the covers, be careful not to get your fingers caught, as this may result in personal injury.
|
6.
Follow the instructions on the screen.
|
NOTE
|
|
The screen indicating the directions on how to clear the paper jam is displayed repeatedly until the paper jam is cleared.
|
