Advanced Space

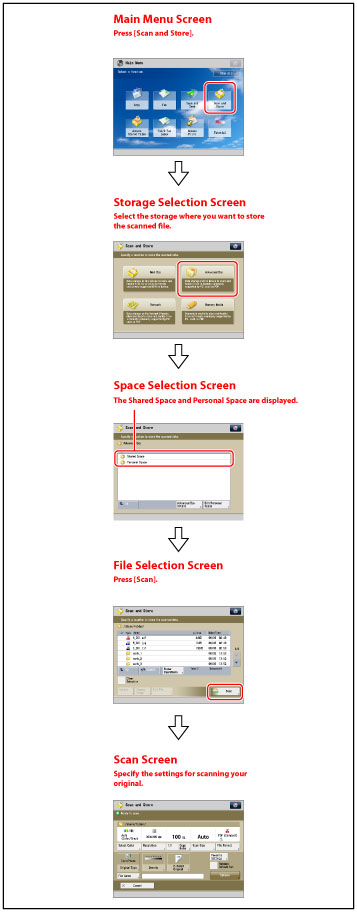

The flow of basic scan and store operations is as follows.

Space Selection Screen

If authentication is set, the Space Selection screen appears after you enter the user name and password.

In the Advanced Space, there are two types of space available: the Shared Space for sharing the same file with other users, and the Personal Space for personal usage.

1	[Up] Press to return to the upper level.
2	[Advanced Box Details] Press to check the details of the Advanced Space.
3	[Edit Personal Space] Press to change the directory name of a Personal Space or create a Personal Space.

Edit Personal Space Screen

Display this screen when you want to edit the Personal Space.

1	[Rename Opened Folder] Press to change the folder name for the Personal Space.
2	[Create Personal Space] ([Delete Personal Space]) Press to create or delete a Personal Space. [Delete Personal Space] is displayed only if a Personal Space is created.

File Selection Screen

A list of folders and files in the selected space is displayed.

An icon indicating the file format of each file when it was scanned and stored appears.

1	You can specify the following settings: Register to Quick Menu (See "Quick Menu.")
2	[Name] Press to sort the files by name, in ascending or descending order. [Date/Time] Press to sort the files by date/time, in ascending or descending order.
3	[Folder Operations] Press to display the menu for editing the folders in the storage space.
4	[Display Image] Press to view the contents of the selected file.
5	[Edit File] Press to delete the selected file or change the file name.
6	[Scan] Your original is scanned and stored in the storage space.
7	[Details] Press to check the details of the selected file.
8	[Clear Selection] Press to cancel the selection of a file.
9	[Up] Press to return to the upper level.
10	[Update] Press to update the contents of the storage space.

Edit File Screen

Display this screen when you want to edit a file in a folder.

1	[Delete] Press to delete a file stored in the folder. You can select and delete up to 32 files at a time.
2	[Change File Name] Press to change a file name.

Scan Screen

Display this screen when you want to scan an original and store it as a file in the selected folder.

1	You can specify the following settings: Register/Edit Favorite Settings Register to Quick Menu (See "Quick Menu.") Change Default Settings
2	[1:1] Press to scan your document in the same size as your original.
3	[Copy Ratio] Press to reduce or enlarge the scanning size of the original.
4	[Scan Size] Press to set the size of the original that you are going to scan.
5	[File Format] Press to select the file format for the files to store.
6	[Favorite Settings] Press to recall scan settings or register frequently used settings in the Favorite Settings.
7	[Restore Default Set.] Press to cancel all settings. (The machine restores the default settings for Scan and Store.)
8	[Options] Press to specify useful scan settings, such as scanning different size originals together or dividing originals into multiple batches.
9	[File Name] Press to assign the file a name.
10	[Density] Press to adjust the density for scanning.
11	[Original Type] Press to select the type of original (text only, photo only, or both text and photo) you are going to scan.
12	[2-Sided Original] Press if you are scanning a two-sided original.
13	[Select Color] Press to select the colour for scanning.
14	[Resolution] Press to select the resolution for scanning.

IMPORTANT
You cannot store files in the Advanced Space in the cases described below. (These numbers may vary depending on the remaining capacity of the memory.) When the storage capacity of the Advanced Space (15.0 GB) is exceeded (If the 2.5inch/1TB HDD is attached, the storage space of the Advanced Space becomes 629.2 GB). When more than 32 computers or other machines simultaneously access the Advanced Space of another imageRUNNER ADVANCE series machine that has been made accessible on the network using SMB. When the full pathname, including folders and the file name, exceeds 256 characters in length. When more than 100,000 files or folders are stored in the Advanced Space. When more than 1,000 files or folders are stored in the selected folder. When the size of a single file exceeds 2 GB. If Authentication Management is set for users of the Advanced Space, after you finish using the Advanced Space, ensure that you press (Log In/Out) to log out.

IMPORTANT

You cannot store files in the Advanced Space in the cases described below. (These numbers may vary depending on the remaining capacity of the memory.)

When the storage capacity of the Advanced Space (15.0 GB) is exceeded (If the 2.5inch/1TB HDD is attached, the storage space of the Advanced Space becomes 629.2 GB).

When more than 32 computers or other machines simultaneously access the Advanced Space of another imageRUNNER ADVANCE series machine that has been made accessible on the network using SMB.

When the full pathname, including folders and the file name, exceeds 256 characters in length.

When more than 100,000 files or folders are stored in the Advanced Space.

When more than 1,000 files or folders are stored in the selected folder.

When the size of a single file exceeds 2 GB.

If Authentication Management is set for users of the Advanced Space, after you finish using the Advanced Space, ensure that you press

(Log In/Out) to log out.

NOTE
We recommend that you delete unwanted files or image data from the Advanced Space to make space for storing new files. For instructions on checking detailed information for the Advanced Space, see "Checking Detailed Information of the Advanced Space." For more information on the icons displayed in the Advanced Space, see "Types of Advanced Space/Network/Memory Media Icons." For instructions on arranging folders, checking detailed information for the file, and editing/deleting files, see "Access Stored Files."

NOTE

We recommend that you delete unwanted files or image data from the Advanced Space to make space for storing new files.

For instructions on checking detailed information for the Advanced Space, see "Checking Detailed Information of the Advanced Space."

For more information on the icons displayed in the Advanced Space, see "Types of Advanced Space/Network/Memory Media Icons."

For instructions on arranging folders, checking detailed information for the file, and editing/deleting files, see "Access Stored Files."
