Inside the Front Cover
Follow the procedure described below, while referring to the location of the paper jam and the directions that appear on the touch panel display, to remove the jammed paper.
|
NOTE
|
|

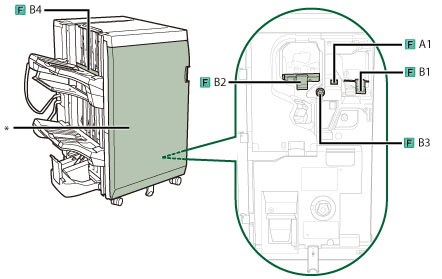

The following illustration indicates the location of the paper jam. Please refer to it to remove the jammed paper.
 *Front Cover
|
1.
Open the front cover of the finisher.

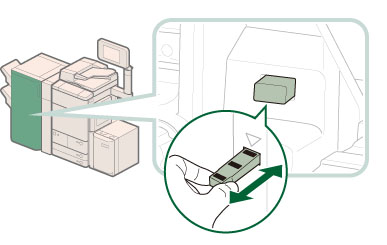

2.
Slide the guide (F-A1) to align it with the mark.
Slide the guide once to align
with
.
with .|
NOTE
|
|
This procedure is not necessary only if the External 2 Hole Puncher-A1, External 2/3 Hole Puncher-A1, or External 2/4 Hole Puncher-A1 is attached.
|

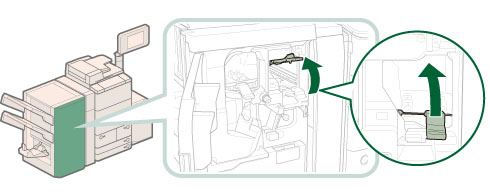

3.
Open the guide (F-B1).

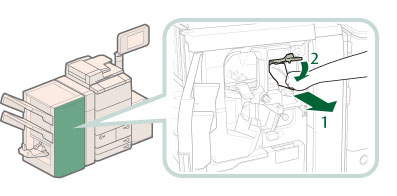

4.
Remove any jammed paper.
 CAUTION |
|
When closing the guide, be careful not to get your fingers caught, as this may result in personal injury.
|
5.
Open the guide (F-B2).

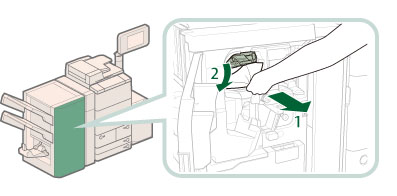

6.
Remove any jammed paper.
|
CAUTION |
|
When closing the guide, be careful not to get your fingers caught, as this may result in personal injury.
|

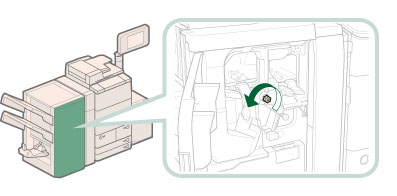

7.
Turn the lower dial (F-B3) in the direction of the arrow (counterclockwise).

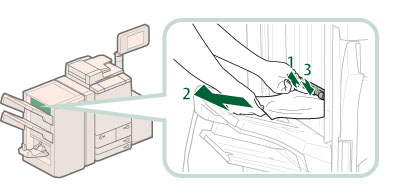

8.
Remove any jammed paper from the guide (F-B4).
|
CAUTION |
|
When closing the guide, be careful not to get your fingers caught, as this may result in personal injury.
|
9.
Close the front cover of the finisher.
|
CAUTION |
|
When closing the cover, be careful not to get your fingers caught, as this may result in personal injury.
|
10.
Follow the instructions on the screen.
|
NOTE
|
|
The screen indicating the directions on how to clear the paper jam is displayed repeatedly until the paper jam is cleared.
|
