Duplex Color Image Reader Unit-G1 (Optional)

Check the location of the paper jam, and follow the procedure described below, while referring to the directions that appear on the touch panel display, to remove the jammed original.
NOTE
The Duplex Color Image Reader Unit-G1 is an optional product.

1.

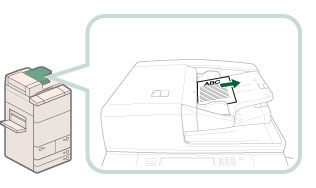

Remove originals from the original supply tray.
2.
Remove any originals from the feeder cover.
1. Pull the lever, and open the feeder cover.
2. Remove any jammed originals.
If there is difficulty in removing jammed paper, do not try to remove it forcibly, and proceed to step 3.
3.
Open the inner cover, holding it by its front tab.
4.
Turn the green feed dial, and remove any jammed originals.
1. Turn the green feed dial.
2. Remove any jammed originals.
5.
Close the inner cover and the feeder cover.
1. Close the inner cover.
2. Close the feeder cover.
CAUTION
When closing the cover, be careful not to get your fingers caught, as this may result in personal injury.
6.
Remove any jammed originals from the feeder.
1. Lift the feeder.
2. Remove any jammed originals.
3. Close the feeder.
CAUTION
When closing the feeder, be careful not to get your fingers caught, as this may result in personal injury.
Be aware that the light emitted from the platen glass may be very bright when closing the feeder.
NOTE
If there is difficulty in removing jammed paper, close the feeder and open the feeder cover and the inner cover, and then proceed to step 4.
7.
Follow the instructions on the screen.
NOTE
The screen indicating the directions on how to clear the paper jam is displayed repeatedly until the paper jam is cleared.
