Feeder
Check the location of the paper jam, and follow the procedure described below, while referring to the directions that appear on the touch panel display, to remove the jammed paper.
|
NOTE
|
|
The feeder is standard-equipped for the imageRUNNER ADVANCE 4051/4045.
|
1.
Remove any paper jammed in the feeder cover.
 |
1. Pull the lever, and open the feeder cover. |
2. Remove any jammed paper. |
2.

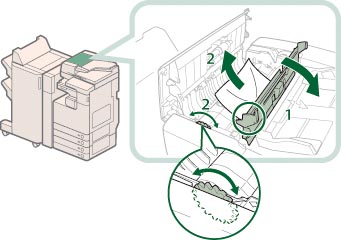

Open the inner cover, and remove any paper jammed.
 |
1. Open the inner cover, holding it by its tab. |
2. Turn the feed dial on the inner side of the feeder cover, and remove the jammed paper. |
3.
Close the feeder cover.
 |
1. Close the inner cover. |
2. Close the feeder cover. |
 CAUTION |
|
When closing the covers, be careful not to get your fingers caught, as this may result in personal injury.
|
4.
Remove any paper jammed in the feeder.
 |
1. Open the feeder. |
2. Remove any jammed paper. |
|
3. Close the feeder. |
|
CAUTION |
|
When closing the feeder, be careful not to get your fingers caught, as this may result in personal injury.
|
5.
Follow the instructions on the screen.
|
NOTE
|
|
The screen indicating the directions on how to clear the paper jam is displayed repeatedly until the paper jam is cleared.
|
