Inside the Front Cover
Check the location of the paper jam, and follow the procedure described below, while referring to the directions that appear on the touch panel display, to remove the jammed paper.
1.
Open the front cover of the finisher.
2.

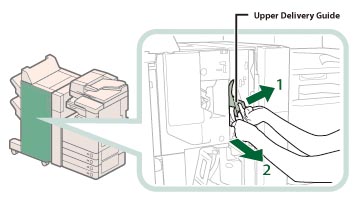

Remove any jammed paper from the upper delivery guide.
 |
1. Open the upper delivery guide. |
2. Remove any jammed paper. |
|
NOTE
|
|
The upper delivery guide is spring-loaded. When you release the upper delivery guide, it returns to its original position.
|
3.
Remove any jammed paper from the lower delivery guide.
 |
1. Tilt the delivery guide to the right. |
2. Remove any jammed paper. |
|
3. Return the delivery guide to its original position. |
 CAUTION |
|
When returning the delivery guide to its original position, be careful not to get your fingers caught, as this may result in personal injury.
|
4.
Close the front cover of the finisher.
|
CAUTION |
|
When closing the cover, be careful not to get your fingers caught, as this may result in personal injury.
|
5.
Follow the instructions on the screen.
|
NOTE
|
|
The screen indicating the directions on how to clear the paper jam is displayed repeatedly until the paper jam is cleared.
|
