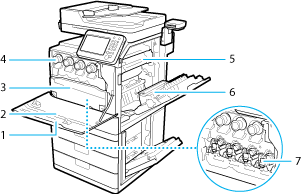

Interior

Front Cover of the Main Unit

Open this cover to replace the toner cartridges, the waste toner container, and the drum unit.

Dust Proof Glass Cleaner

Use this cleaner when cleaning the dust proof glass. The Dust Proof Glass

Waste Toner Container

When the waste toner container becomes full, replace it with a new one. How to Replace The Waste Toner Container

Toner Cartridges

When toner runs out, pull out the toner cartridge and replace it with a new one. How to Replace Toner Cartridges

Fixing Assembly

The unit that fixes toner onto paper. If paper is jammed in the fixing assembly, remove the fixing assembly from the machine and then carefully remove the jammed paper. Clearing Jams

Duplexing Unit

If paper is jammed in the duplexing unit, remove the paper jam. Clearing Jams

Drum Units

The units that set toner onto paper. For instructions on replacing the drum units, see Replacing Drum Units

Envelope Feeder Attachment

Use when loading envelopes in a paper drawer. Envelope Feeder Attachment can only be used in Paper Drawer 1. Loading Envelopes
14CE-009
