Connecting the Telephone Line
Connect the telephone line to the machine.
|
|
|
If you previously selected <Set Up Later> on the fax setup screen (Registering the Fax Number and Unit Name), tap <Menu>
 <Fax Settings> <Fax Setup Guide> to display the fax setup screen. |
1
Tap <Next>.

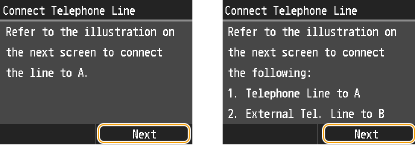

One of the screens shown here is displayed after the receive mode has been set (Selecting the Receive Mode).
2
Connect the telephone line to the machine.
Notice for Connecting the Telephone Line
This product includes the Telephone Line Cord and Adapter to connect the telephone line. Depending on your country or region, you may need to use the provided Adapter to connect the Telephone Line Cord to the wall telephone jack. If you use the provided Adapter, follow the instructions below to connect correctly.
If you use provided Adapter, use the Telephone Line Cord with 6 contacts connector in the package with Adapter.
Do not connect the Telephone Line Cord with 2 contacts connector to Adapter. There is the case that this product or connected telephone does not work correctly.
Adapter to use is different depending on your country or a region. Select the proper type of Adapter which you usually use.

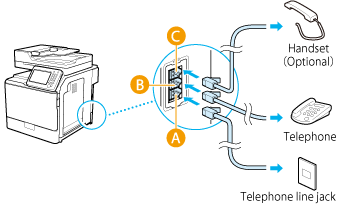

Connect the telephone cable to the telephone line jack on the machine (
) and the telephone line jack on the wall.
) and the telephone line jack on the wall. If you are using a telephone or answering machine, connect it to the external telephone jack (
).
).If you are using an optional handset, connect it to the handset jack (
).
).
If you are connecting an external telephone with fax functions, set up the telephone to receive faxes manually.
3
Tap <Next> after the telephone line has been connected.
4
Tap <Yes>.
5
Tap <OK>.
6
Restart the machine.
Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.
When the machine is restarted, the telephone line type is automatically set.
If the machine does not automatically set the type of telephone line
Follow the procedure below to set the type of telephone line. If you are not sure of the type of phone line you are using, contact your local telephone company. <Select Line Type> may not be available depending on the country where you are using the machine.
<Menu> <Fax Settings> <Basic Settings> <Select Line Type> Select the type of telephone line
<Fax Settings> <Basic Settings> <Select Line Type> Select the type of telephone line
