You can change the settings only when you have logged on in System Manager Mode.
|
1
|

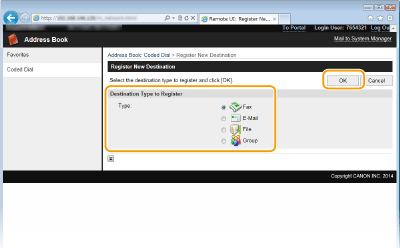

Select [File] and click [OK].
|
2
|

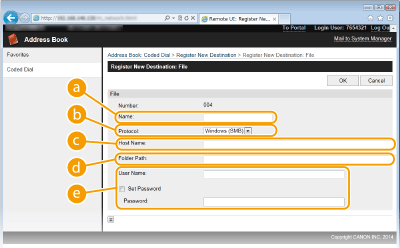

Enter required information.
[Name]
Enter the destination name.
[Protocol]
[Windows(SMB)]: Select when using a shared folder.
[FTP]: Select when using a file server. [Host Name]
To use a shared folder, enter the path to the shared folder (up to 120 characters) or enter the IP address (example: \\swan\share or \\192.168.2.100\share).
To use a file server, enter the IP address for the FTP server (up to 120 characters) (example: \ \192.168.2.100\share).
Using a DNS server
You also can specify the host name for the shared folder in the following format.
\\host_name.organization.company.co.jp\share You can use the full computer name for the host name of the file server. starfish.organization.company.com
If the display languages for the computer and Remote UI differ
[Host Name] or [Folder Path] may not be displayed correctly or may not be browsable.
[Folder Path]
Enter a folder name (up to 120 characters) as a destination for the data.
[User Name]/[Password]
Enter the user name and password set with the computer.
Formats for specifying the user name (shared folder)
domain_name\user_name (up to 32 characters all together):
Specifying the user name in this format applies privileges for the user in the specified domain to SMB communication. user_name@company.com (up to 32 characters all together):
This format can only be specified when sending to Windows Server 2003/Server 2008/Vista/7/Server 2008 R2/8/8.1/Server 2012/Server 2012 R2 that belongs to a domain for which the domain controller is Windows Server 2003/Server 2008/Vista/7/Server 2008 R2/8/8.1/Server 2012/Server 2012 R2. |
3
|
Click [OK].
|
