Gutter

This mode enables you to make prints with the entire image shifted by a designated width to the left, right, top, or bottom in order to create a gutter on the prints. Use this mode to make prints ready for placement in ring binders.
Left Margin Selected
Right Margin Selected
Top Margin Selected
Bottom Margin Selected
IMPORTANT
This mode can be used only for printing a file stored in a mail box.

1.
Press [Access Stored Files] → [Mail Box].
2.
Select the desired Mail Box → select the desired file → press [Print].
3.
Press [Change Print Settings].
4.

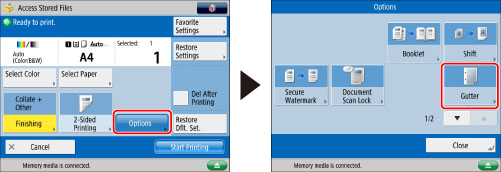

Press [Options] → [Gutter].
To change the paper source, see "Paper Selection."
5.
Select the gutter position.
6.
Press [Front Side] or [Back Side] → press [-] or [+] to set the gutter width → press [OK].
Press [-] or [+] to set the gutter width.
NOTE
If you are using the Gutter and 2-Sided Printing modes together and printing a file that already has a gutter, set the Gutter mode for the back only.
If you are using the Gutter and 2-Sided Printing modes together and printing a file that does not have a gutter, set the Gutter mode for both the front and back.
If you enter a value other than 0, you can switch between positive and negative gutter width by pressing [±].
Examples:
(+) 10 → [±] → - 10
- 50 → [±] → (+) 50
7.
Press [Close].

IMPORTANT
For information on the modes which cannot be set in combination with this mode, see "Unavailable Combination of Functions."
12HH-15L
