Feeder

You should use the feeder when you want to copy several originals at the same time. Place the originals into the feeder and press

(Start). The machine automatically feeds the originals to the platen glass and scans them. Two-sided originals can also be automatically turned over and scanned as two-sided documents.

Tray Capacity:

Weight:

13 to 32 lb bond (50 to 128 g/m2)

Original size: 11" x 17", LGL, LTR, LTRR, and STMT

Tray Capacity: 50 sheets (20 lb bond (80 g/m2))

IMPORTANT
Thin originals may become creased, if used in a high temperature or high humidity environment. Do not place the following types of originals into the feeder: Originals with tears or large binding holes Severely curled originals or originals with sharp folds Clipped or stapled originals Carbon backed paper or other originals which may not feed smoothly Transparencies and other highly transparent objects Always smooth out any folds in your originals before placing them into the feeder.

IMPORTANT

Thin originals may become creased, if used in a high temperature or high humidity environment.

Do not place the following types of originals into the feeder:

Originals with tears or large binding holes

Severely curled originals or originals with sharp folds

Clipped or stapled originals

Carbon backed paper or other originals which may not feed smoothly

Transparencies and other highly transparent objects

Always smooth out any folds in your originals before placing them into the feeder.

Adjust the slide guides to fit the size of your originals.

Neatly place your originals with the side to be copied face up into the original supply tray.

Place your originals as far into the feeder as they will go, until the Original Set indicator is lit.

If any dirt on the original scanning area is detected when the originals are placed in the feeder, the screen prompting you to clean the scanning area appears. Even though streaks may appear on the copies, you can continue to scan your documents by pressing [Close]. For instructions on cleaning the original scanning area, see "Routine Maintenance" in the Basic Operation Guide.

IMPORTANT

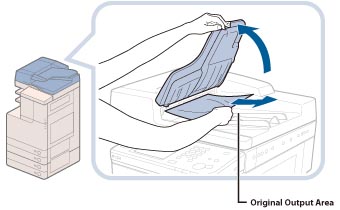

Do not add or remove originals while they are being scanned. When scanning is complete, remove the originals from the original output area to avoid paper jams.

NOTE
When you are enlarging an LTR or STMT original onto 11" x 17" or LGL paper, place the original horizontally. The scanned originals are output to the original output area in the order they are fed into the feeder. You can place different size originals together into the feeder if you set the Different Size Originals mode. For more information, see the following: "Different Size Originals" for "Copy" "Different Size Originals" for "Scan and Store" "Different Size Originals" for "Scan and Send" "Different Size Originals" for "Using the Machine to Send/Receive a Fax"

NOTE

When you are enlarging an LTR or STMT original onto 11" x 17" or LGL paper, place the original horizontally.

The scanned originals are output to the original output area in the order they are fed into the feeder.

You can place different size originals together into the feeder if you set the Different Size Originals mode. For more information, see the following:

"Different Size Originals" for "Copy"

"Different Size Originals" for "Scan and Store"

"Different Size Originals" for "Scan and Send"

"Different Size Originals" for "Using the Machine to Send/Receive a Fax"

IMPORTANT
If the same original is fed through the feeder repeatedly, the original may fold or become creased, and make feeding impossible. Limit repeated feeding to a maximum of 30 times (this number varies, depending on the type and quality of the original). If the feeder rollers are dirty from scanning originals written in pencil, perform the feeder cleaning procedure. (See "Routine Maintenance" in the Basic Operation Guide.)

IMPORTANT

If the same original is fed through the feeder repeatedly, the original may fold or become creased, and make feeding impossible. Limit repeated feeding to a maximum of 30 times (this number varies, depending on the type and quality of the original).

If the feeder rollers are dirty from scanning originals written in pencil, perform the feeder cleaning procedure. (See "Routine Maintenance" in the Basic Operation Guide.)
