Finishing

[Off]* ,[Collate], [Rotate+Collate], [Rotate+Group], [Offset+Collate], [Copies], [Offset+Group], [Staple+Collate], [Staple+Group]

Copies to Offset (Offset+Collate):

1 to 9999; 1*

Staple Position (Staple+Collate):

Corner (Upper-L), Double (Top), Corner (Upper-R), Double (Right), Corner (Lower-R), Double (Bottom), Corner (Lower-L), and Double (Left)

Staple Position (Staple+Group):

Grp Upp L-Corner, Grp Double(Top), Grp Upp R-Corner, Grp Double(R), Grp Lwr R-Corner, Grp Double(Btm), Grp Lwr L-Corner, and Grp Double(L)

Some of the above options require specific delivery trays and may not be available unless appropriate delivery trays are installed.

: Available - : Unavailable

	No Options	Inner 2 Way Tray-F1, Copy Tray-J1	Inner Finisher-C1
Collate
Rotate+Collate			-
Rotate+Group			-
Offset+Collate	-	-
Offset+Group	-	-
Staple+Collate	-	-
Staple+Group	-	-

You can choose from several features when collating printed matter.

If you select [1200 dpi] for [Resolution], you cannot set Rotate Collate.

Off

This setting prints all copies of the same page before printing the next page.

Collate

This setting prints all pages of each copy before printing the next copy.

Rotate+Collate

This setting prints all pages of each copy (collating), and rotates every other complete copy 90 degrees to indicate where each copy starts.

Rotate+Group

This setting prints all copies of the same page before printing the next page. It rotates every other complete set of pages to indicate where each new set starts.

Offset+Collate

This setting prints all pages of each copy (collating). It offsets every other complete copy by the number specified with this setting to indicate where each copy starts.

Offset+Group

This setting prints all copies of the same page before printing the next page. It offsets every other complete set of pages to indicate where each new set starts.

Staple+Collate

This setting prints all pages of each copy (collating) and prepares them for stapling according to the option selected for [Staple+Collate].

Staple+Group

This setting prints all copies of the same page before printing the next page, and prepares them for stapling according to the option selected for [Staple+Group].

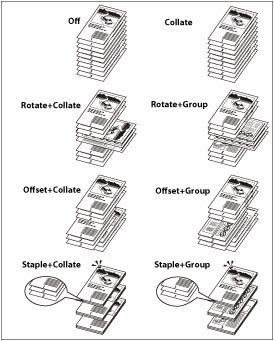

Examples of each Finishing option when printing three copies of a three page document:

Inner Finisher-C1

: Available - : Unavailable

	Corner (Upper-Left)	Double (Top)	Corner (Upper-Right)	Double (Right)	Corner (Lower-Right)	Double (Bottom)	Corner (Lower-Left)	Double (Left)
11" x 17"				-				-
LGL				-				-
LTR		-				-
LTRR				-				-
A3				-				-
JIS-B4				-				-
A4		-				-
A4R				-				-
JIS-B5		-				-

IMPORTANT
A large print job may be automatically canceled by the machine. The maximum number of pages that can be printed at one time is approximately 6,000 pages. However, this number may be fewer than 6,000 if other functions (such as registering a form) are in use, or other jobs are being processed. If you select [1200 dpi] for [Resolution], you cannot use A4R or LTRR size paper.

NOTE
[Rotate+Collate] and [Rotate+Group] are available if the paper size is LTR, LTRR, A4, A4R, B5, or B5R. If you select [Rotate+Collate] or [Rotate+Group], part of the print image may be cut off when the image is rotated. You need to load the same size paper as the original in the paper drawers in both landscape and portrait positions. If you do not, all the sheets will be printed in the orientation that the loaded paper is in. [Offset+Collate] and [Offset+Group] are available if you select the following paper size. 11" x 17", LGL, LTR, LTRR, A3, A4, A4R, B4, or B5 When you are stapling paper in landscape orientation, the image orientation and the staple position may not match. When you select [Staple+Collate] or [Staple+Group], you can select the stapling position. [Staple+Collate] and [Staple+Group] are available for selection if the paper size is 11" x 17", LGL, LTR, LTRR, A3, JIS-B4, A4, A4R, or JIS-B5 when the Inner Finisher-C1 is attached. Available staple locations depend on paper size and image orientation, as shown. The maximum number of sheets that can be stapled for the Inner Finisher-C1 is 30 for 11" x 17", LGL, A3, and JIS-B4, 50 for LTR, LTRR, A4, A4R, and JIS-B5. If the number of sheets is greater than the limit, they will not be stapled.

NOTE

[Rotate+Collate] and [Rotate+Group] are available if the paper size is LTR, LTRR, A4, A4R, B5, or B5R.

If you select [Rotate+Collate] or [Rotate+Group], part of the print image may be cut off when the image is rotated. You need to load the same size paper as the original in the paper drawers in both landscape and portrait positions. If you do not, all the sheets will be printed in the orientation that the loaded paper is in.

[Offset+Collate] and [Offset+Group] are available if you select the following paper size.

11" x 17", LGL, LTR, LTRR, A3, A4, A4R, B4, or B5

When you are stapling paper in landscape orientation, the image orientation and the staple position may not match.

When you select [Staple+Collate] or [Staple+Group], you can select the stapling position.

[Staple+Collate] and [Staple+Group] are available for selection if the paper size is 11" x 17", LGL, LTR, LTRR, A3, JIS-B4, A4, A4R, or JIS-B5 when the Inner Finisher-C1 is attached. Available staple locations depend on paper size and image orientation, as shown.

The maximum number of sheets that can be stapled for the Inner Finisher-C1 is 30 for 11" x 17", LGL, A3, and JIS-B4, 50 for LTR, LTRR, A4, A4R, and JIS-B5. If the number of sheets is greater than the limit, they will not be stapled.
