Various Scan Settings

This mode enables you to can specify various scan settings when using originals that cannot be scanned with [Auto] (such as transparencies or originals smaller than A5) or when it is necessary to specify a particular size. You can also register frequently used scan size settings.

This mode enables you to scan originals by specifying a paper size.

If you want to scan an A3 original with an image that extends all the way to the edges without the periphery of the original being cut off, place the original on the platen glass → press [A3+].

This mode enables you to enter a desired X ratio and Y ratio to specify the size for scanning originals.

This mode enables you to enlarge or reduce originals when scanning. You can also set to calculate copy ratios automatically.

The machine offers you a variety of preset zoom ratios to enlarge or reduce standard size originals to other standard sizes.

You can specify a manual zoom ratio in 1 % increments. The same zoom ratio is used for the horizontal (X) and vertical (Y) axes.

Select this mode to have the machine automatically select the zoom ratio based on the selected record size. The same zoom ratio is used for the horizontal (X) and vertical (Y) axes.

This mode enables you to scan and store both sides of two-sided originals at once by placing them in the feeder.

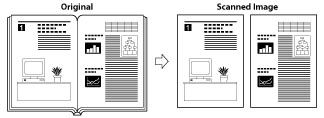

This mode enables you to scan facing pages of a book or bound original and store them as two separate pages.

This mode enables you to erase the shadows of punch holes and the shadows and lines that appear around the edges when scanning various types of originals.

The following three Erase Frame modes are available.

This mode erases the dark borders and frame lines that appear around the scanned image if the original is smaller than the selected record size. You can also use this mode to create a blank border around the edge of the scanned image.

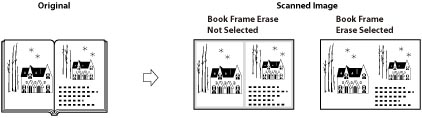

This mode erases the dark border and the centre and contour lines that appear when you scan facing pages in a book or bound original.

This mode erases the shadows that appear on scanned images from binding holes on originals.

This mode enables you to scan different size originals with the same widths (A3 and A4, or B4 and B5, etc.) or different widths (A3 and B4, or A4 and B5, etc.) together.

This mode enables you to scan originals that are too many to be placed at once, by dividing them into multiple batches. You can use both the feeder and the platen glass to scan.

* : Depending on the region, the optional product is required to use this function. For information on the optional product, see "Optional Products Required for Each Function."
