Compact PDF Files

This mode enables you to scan text originals or text/photo originals using a high compression ratio. If you select [Compact], it is recommended that you set the original type setting to either 'Text' or 'Text/Photo', depending on the image type.
As an example, the procedure for selecting memory media as the storage location is explained in this section.
IMPORTANT
PDF (Compact) is only valid with the following settings:
Select Color: Colour mode other than the Black-and-White mode
Resolution: 300 x 300 dpi
Copy Ratio: 100% or Auto

1.

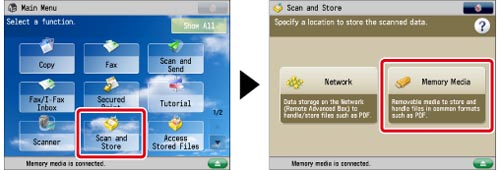

Press [Scan and Store] → [Memory Media].
2.

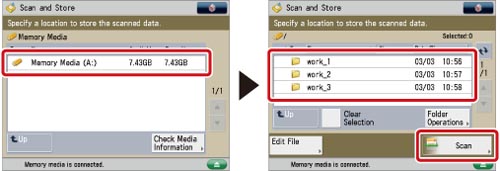

Select the memory media → select the destination folder → press [Scan].
3.

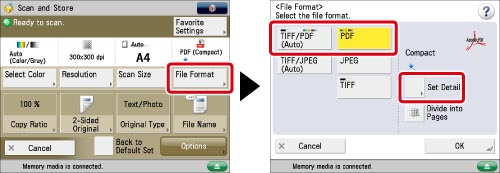

Press [File Format] → select a file format → press [Set Details].
4.
Press [Compact] → [OK] → [OK].
If you want to separate a document with multiple pages into separate pages and scan them as separate files, set [Divide into Pages] to 'On'. If you want to scan the images as a single file, turn the setting 'Off'.

IMPORTANT
If you select [Compact] for PDF file format, the colour mode is changed from [Auto (Color/Black)] and [Black & White] to [Auto (Color/Gray)] and [Grayscale]. If you want to scan the document with the colour mode that you specify, change the PDF file format to anything other than [Compact] and [Trace & Smooth].
NOTE
For information on the modes which cannot be set in combination with this mode, see "Combination of Functions Chart."
