Copy Set Numbering

This mode enables you to print a five-digit copy set number in transparent characters on prints.

You can manually set the start number for printing copy set numbers.

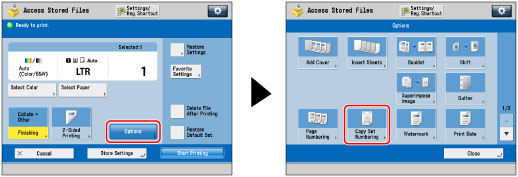

Press

(Main Menu) → [Access Stored Files].

Select the desired Mail Box → select the desired file → press [Print].

Press [Change Print Settings].

Press [Options] → [Copy Set Numbering].

Set the image orientation and print position.

Orientation:

[Upright Image]:	Prints the image upright on the paper.
[Sideways Image]:	Prints the image sideways on the paper.

Upright Image			Sideways Image

Press [Full Surface] to print the copy set number repeatedly over the surface of the output.

Press [Numbers in 5 Locations] to select all five print positions.

NOTE
If you set <Number Option> to 'On' in [Copy Set Numbering Option Settings], [Full Surface] and [Numbers in 5 Locations] are grayed out and cannot be selected. (See "Copy Set Numbering Options.") If you set any two of [Page Numbering], [Watermark], or [Print Date] to print in the same position, a confirmation message appears when you press (Start).

You can press [Set Details] to adjust the printing position.

To adjust the printing position, press [X] or [Y] → adjust the printing position with [-] or [+] → press [OK].

Specify the print settings for the copy set numbers.

Press the <Size> drop-down list → select the size of the copy set numbers.

NOTE
If you set <Number Option> to 'On' in [Copy Set Numbering Option Settings], you can set the copy set number size to [10.5 pt], [12.0 pt], or [14.0 pt]. (See "Copy Set Numbering Options.")

Press the <Color> drop-down list → select the colour of the page numbers.

Press [Light] or [Dark] for <Density> to adjust the density.

Enter the starting number using

(numeric keys).

Press [OK] → [Close].

IMPORTANT
Printing performance may not be optimal, depending on the file content and combination of settings. If you use [Copy Set Numbering] with [Add Cover], [Insert Sheets], or [Job Separator], the watermark will not be printed on the inserted pages.

NOTE
The Copy Set Numbering mode cannot be used with files including images with resolutions of less than 600 x 600 dpi. If the copy set number has fewer than five digits, the machine prints it as follows: Example: If the copy set number is 10, "00010" is printed.
