Viewing e-Manual
Symbols Used in This Manual
The following symbols are used in this manual to explain procedures, restrictions, handling precautions, and instructions that should be observed for safety.
|
|
|
Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.
|
 |
|
Indicates a caution concerning operations that may lead to injury to persons if not performed correctly. To use the machine safely, always pay attention to these cautions.
|
|
IMPORTANT
|
|
Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the machine correctly, and avoid damage to the machine or property.
|
|
NOTE
|
|
Indicates a clarification of an operation, or contains additional explanations for a procedure. Reading these notes is highly recommended.
|
 |
|
Indicates an operation that must not be performed. Read these items carefully, and make sure not to perform the described operations.
|
Keys Used in This Manual
The following table provides a few examples of how keys to be pressed are expressed in this manual:
|
Keys
|
Example
|
|
|
Control Panel
|
Key icon + (Key Name)
|
 (Additional Functions) |
|
Touch Panel Display
|
[Key Name]
|
[OK], [Cancel], etc.
|
|
[Key Icon]
|
[
 ], [ ], etc. |
Illustrations Used in This Manual

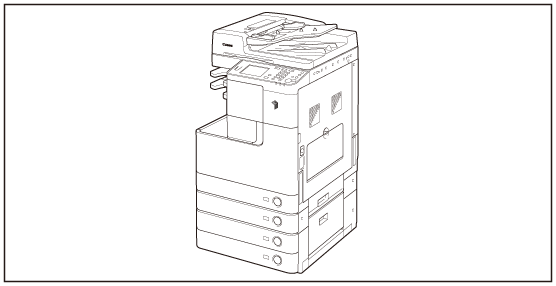

The machine illustrations used in this manual are those of the imageRUNNER 2545i with the following optional equipment attached: the Inner Finisher-B1, Inner Finisher Additional Tray-B1, and CST. Feeding Unit-AE1.
Displays Used in This Manual
Screen shots used in this manual may differ from actual displays depending on the machine configuration.
The keys to be pressed are marked with a
, as shown below.
, as shown below.When multiple keys can be pressed, all of them will be marked. Select the keys best suited to your needs.
