[Setup] Menu ([Layout] Options)

NOTE
Table description
Bold values in the table indicate the default settings.
About the icon
 :
The settings for the printer driver are prioritized for this item.
Setting Item
Setting Value
Setting
[Copies]
1 to 9999
Specifies the number of copies to be printed.
The printer prints the specified number of copies.
[Offset Y]/[Offset X]
-50.0 to 0.0 to +50.0 (mm)
Adjusts the printing position in the vertical direction (Y) or the horizontal direction (X) by the specified value.

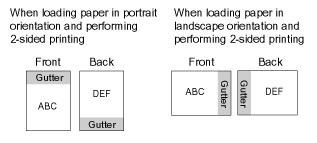

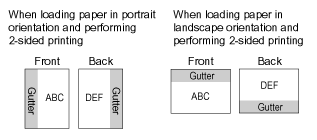

[Binding Location]
[Long Edge], [Short Edge]
Specifies which edge of the paper, the long edge or short edge, is to be bound. When performing 2-sided printing, the printer adjusts the binding location automatically according to the paper surface.
If [Long Edge] is specified, the binding location is created on the long edge of the paper.
If [Short Edge] is specified, the binding location is created on the short edge of the paper.

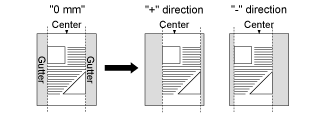

[Gutter]
-50.0 to 0.0 to +50.0 (mm)
Specifies the gutter width for printing with the binding location created. A gutter is created with the image shifted by the specified value.
You can shift the image in the "+" direction with a positive value and in the "-" direction with a negative value.
[Alternative Method]
[Off], [On]
If this item is set to [On] and if the last page for the 2-sided printing is 1-sided printing, 1-sided printing is applied to the last page. (Printing can be performed faster than normal 2-sided printing.)
However, when performing 2-sided printing on punched paper or previously printed paper, the orientation or printing surface of the last page may differ from other pages. In this case, specify [Off].
If [On] is specified, 1-sided printing is also performed in the following cases.
The page on the back side of the sheet (even-numbered page) is blank.
The page on the back side of the sheet (even-numbered page) cannot be printed (for example due to page size not permitting 2-sided printing).
