Performing the Configuration Using the Printer's Control Panel (When You First Set it Up)

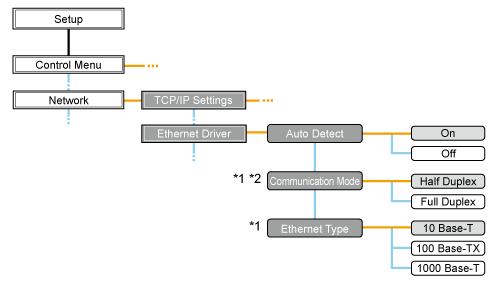

When configuring the interface using the printer's control panel, use the following menu hierarchy.
*1 | [Communication Mode] and [Ethernet Type] are displayed when [Auto Detect] is set to [Off]. |
*2 | [Communication Mode] appears only when [Ethernet Type] is set to a setting other than [1000 Base-T]. |
| Pressing [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_KET050_L.gif) ] ( ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_C211.gif) Settings) displays the common Setup menu. ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_CTB061.gif) indicates that the procedure is performed by pressing [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_up.gif) ] or [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_down.gif) ] on the control panel. ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_CTB060.gif) indicates that the procedure is performed by pressing [OK] on the control panel. |
IMPORTANT |
After performing the configurationTo enable the settings, perform a hard reset or restart the printer. For details on a hard reset, see " Canceling All the Jobs (Hard Reset)." To go back up the hierarchyPress [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_ZSK212.gif) ] ( ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_KET_panel002.gif) Back). About the control panelFor details on the control panel, see " Control Panel." |
1
Press [
![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_KET050_L.gif)
] (
![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_C211.gif)
Settings), select [Network] using [
![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_up.gif)
] and [
![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_down.gif)
], and then press [OK].
When the message is displayed, press [OK].
| You can specify the settings when the printer is either online (the ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_C201.gif) Online indicator is on) or offline (the ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_C201.gif) Online indicator is off). |
2
Select [Ethernet Driver] using [
![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_up.gif)
] and [
![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_down.gif)
], and then press [OK].
3
Configure the Ethernet driver.
| This printer can detect the communication method and Ethernet type automatically. Normally, set [Auto Detect] to [On]. If you want to fix the communication method and Ethernet type, set [Auto Detect] to [Off]. |
| If you are using a hub, match the settings for the hub and the printer. For the settings of the hub you are using, consult your network administrator. |
(Example)
Hub settings
Communication mode: Full duplex
Ethernet type: 10 Base-T
Printer settings
[Auto Detect]: [Off]
[Communication Mode]: [Full Duplex]
[Ethernet Type]: [10 Base-T]
When detecting the Ethernet driver automatically (Default)
(1) | Select [Auto Detect] using [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_up.gif) ] and [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_down.gif) ], and then press [OK]. |
(2) | Select [On] using [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_up.gif) ] and [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_down.gif) ], and then press [OK]. |
When detecting the Ethernet driver manually
(1) | Select [Auto Detect] using [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_up.gif) ] and [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_down.gif) ], and then press [OK]. |
(2) | Select [Off] using [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_up.gif) ] and [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_down.gif) ], and then press [OK]. |
(3) | Select [Communication Mode] using [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_up.gif) ] and [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_down.gif) ], and then press [OK]. |
(4) | Select an Ethernet communication method appropriate for your network environment using [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_up.gif) ] and [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_down.gif) ], and then press [OK]. [Half Duplex]: | Receives and transmits data alternately, not simultaneously. | [Full Duplex]: | Receives and transmits data simultaneously. |
|
(5) | Select [Ethernet Type] using [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_up.gif) ] and [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_down.gif) ], and then press [OK]. |
(6) | Select an Ethernet type appropriate for your network environment using [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_up.gif) ] and [ ![](./images/book_images/pubnumbers/USRMA-0668-zz-SS-enUV/b_key_down.gif) ], and then press [OK]. |
4
Perform a hard reset or restart the printer.
After performing a hard reset or restarting the printer, the settings are effective.
NOTE |
For details on a hard reset |
