About the film attached to the control panelRemove it before using the panel. |

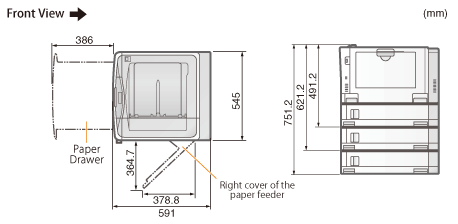

(1) | Power Switch |  | (4) | Control Panel | | (7) | Right Cover | | (10) | Lift Handles |
(2) | Front Cover | | (5) | Output tray | | (8) | Multi-purpose Tray | | ||
(3) | Paper Drawer | | (6) | USB memory connector* | | (9) | Ventilation Slots | |
* | LBP843Cx only. |
(1) | Rear Cover | | (5) | ACT Indicator (Green) | | (9) | Bottom Rear Cover* |
(2) | SD Card Slot Cover* | | (6) | LNK Indicator (Green) | | (10) | Lift Handles |
(3) | USB Connector (for USB devices) | | (7) | LAN Connector | | (11) | Rating Label |
(4) | USB Connector (for connecting to computer) | | (8) | Ventilation Slots | | (12) | Power Socket |
* | LBP843Cx only. |
(1) | Y (Yellow) Toner Cartridge Slot | | (5) | Fixing Unit |
(2) | M (Magenta) Toner Cartridge Slot | | (6) | ITB (Intermediate Transfer Belt) Unit |
(3) | C (Cyan) Toner Cartridge Slot | | (7) | Secondary Transfer Roller |
(4) | K (Black) Toner Cartridge Slot | |

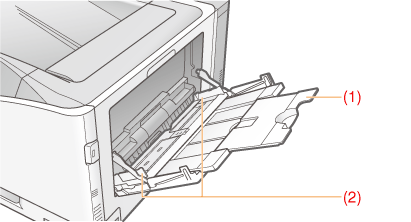

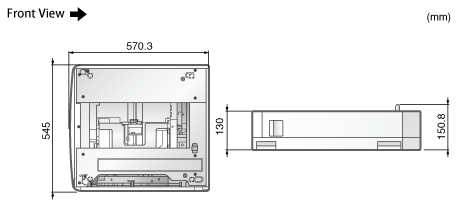

(1) | Tray Extension | | (2) | Paper Guides |
(1) | Lock Release Lever | | (2) | Paper Guides | | (3) | Paper Size Guide | | (4) | Paper Level Indicator |
