Optional Equipment

69KF-0X3

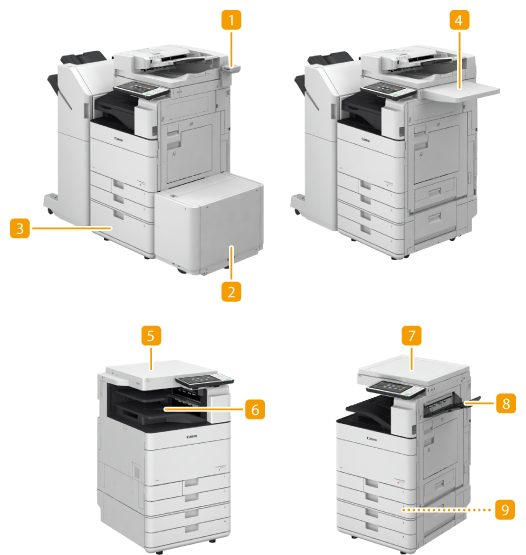

By combining options, you can use functions more efficiently.

When the Staple Finisher-Y/Booklet Finisher-Y is installed

Booklet Finisher-Y

You can perform collating, grouping, stapling (Corner/Double/Saddle Stitch), and saddle folding with this option. In addition, you can manually bind with the stapler or bind without the stapler. Staple Finisher-Y/Booklet Finisher-Y/Buffer Pass Unit-L/2/3 Hole Puncher Unit-A/2/4 Hole Puncher Unit-A (for the 230 V machine only)

Buffer Pass Unit-L

Feeds paper to the finisher.Staple Finisher-Y/Booklet Finisher-Y/Buffer Pass Unit-L/2/3 Hole Puncher Unit-A/2/4 Hole Puncher Unit-A (for the 230 V machine only)

Cassette Feeding Unit-AM

Load the type of paper that you frequently use. You can load paper that cannot be loaded in the paper drawer 1, such as A3 and custom size paper. Cassette Feeding Unit-AM

2/3 Hole Puncher Unit-A/2/4 Hole Puncher Unit-A (for the 230 V machine only)

If you install the "2/3 Hole Puncher Unit-A" or "2/4 Hole Puncher Unit-A" (for the 230 V machine only) in the "Staple Finisher-Y" or "Booklet Finisher-Y," you can punch holes in your printouts. Staple Finisher-Y/Booklet Finisher-Y/Buffer Pass Unit-L/2/3 Hole Puncher Unit-A/2/4 Hole Puncher Unit-A (for the 230 V machine only)

Staple Finisher-Y

You can perform collating, grouping, and stapling (Corner/Double) with this option. In addition, you can manually bind with the stapler or bind without the stapler. Staple Finisher-Y/Booklet Finisher-Y/Buffer Pass Unit-L/2/3 Hole Puncher Unit-A/2/4 Hole Puncher Unit-A (for the 230 V machine only)

When the Inner Finisher-H is installed

Inner Finisher-H

You can perform collating, grouping, offsetting, and stapling (Corner/Double) with this option. In addition, you can manually bind with the stapler or bind without the stapler. Inner Finisher-H/Inner 2/4 Hole Puncher-B/Inner 2/3 Hole Puncher-B

Inner 2/4 Hole Puncher-B/Inner 2/3 Hole Puncher-B

If you install the "Inner 2/4 Hole Puncher-B" or "Inner 2/3 Hole Puncher-B" in the "Inner Finisher-H," you can punch holes in your printouts. Inner Finisher-H/Inner 2/4 Hole Puncher-B/Inner 2/3 Hole Puncher-B

When Other Options are Installed

Copy Card Reader

You can implement Department ID Management using the card reader. Copy Card Reader

Paper Deck Unit-F

If you install the "Paper Deck Unit-F" to the machine, you have an additional large-capacity paper source. Paper Deck Unit-F

High Capacity Cassette Feeding Unit-A

If you install the "High Capacity Cassette Feeding Unit-A" to the machine, you have an additional large-capacity cassette. High Capacity Cassette Feeding Unit-A

Utility Tray-B

This option provides space for placing originals.

Printer Cover-J

Install this option if you use the machine as a printer. Printer Cover-J

Inner 2way Tray-J

This option enables paper to be output to two locations. Inner 2way Tray-J

Platen Cover Type W

This option holds the original placed on the platen glass in place. Platen Cover Type W

Copy Tray-J

This option enables paper to be output to two locations. Copy Tray-J

Tab Feeding Attachment Kit-F

Attach the "Tab Feeding Attachment Kit-F" to load tab paper into the paper drawer of the machine. This option can only be attached to the Paper Drawer 2, and holds only A4 tab paper.
For information on the combination of options that can be installed on the machine, contact your local authorized Canon dealer.
Some of the settings may not be displayed depending on the configuration of optional equipment installed on the machine.
