Inner 2way Tray-J

19X7-0FS

Attach this to add an additional output destination. This is useful when you wan to use separate output trays for different functions, such as copying, printing, and faxing.

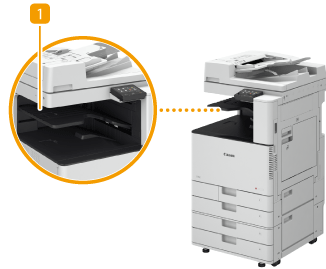

Inner Tray

Paper is output to the output tray.


To install "Inner 2way Tray-J" requires "3 Way Unit-D."

TIPS
If you attach "Copy Tray-J" at the same time, you can add an additional output destination..
