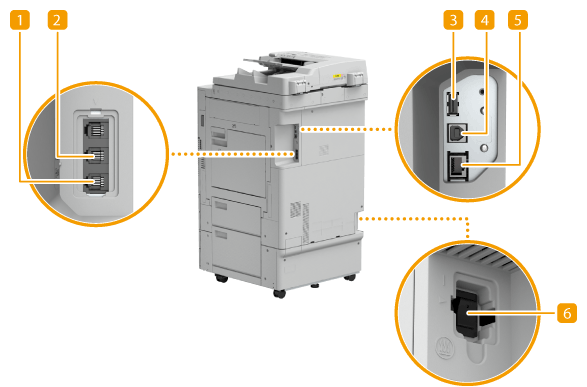

Back Side
Telephone line jack
Connect a telephone cable when connecting the machine to a telephone line. Connecting the Telephone Line
External telephone jack
Connect your telephone or answering machine. Connecting the Telephone Line
USB port (Back side of the machine)
Use this port to connect devices such as a third-party USB keyboard.
The USB port (back side of the machine) supports USB 2.0.
USB connector
Connect a USB cable when connecting the machine and a computer.
The USB connector supports USB 2.0.
LAN port
Connect a LAN cable when connecting the machine to a wired LAN router, etc. Connecting to a Wired LAN
Dehumidification switch
If paper in the paper drawer is found humid, set the dehumidification switch to "
" side. Warming paper to dry it will prevent printing errors effectively.
" side. Warming paper to dry it will prevent printing errors effectively.
