Relocating the Machine
The machine is heavy. Make sure to follow the procedure below when moving the machine to avoid injury.
1
Turn OFF the machine and computer.
Turning the printer OFF erases any queued print data. Data such as documents received and held in memory, documents waiting to be sent, and reports that are automatically printed after sending or receiving faxes are not deleted.
2

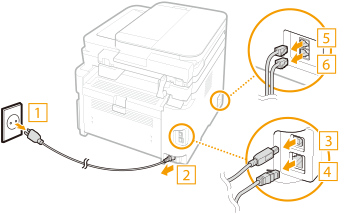

Disconnect the cables and cord from the machine in numerical order as in the illustration below.
Whether the cables with "*" are connected depends on your environment.
If an optional handset is mounted on the machine, remove the handset from its mounting.
|
|
|||
 Power plug Power cord USB cable* LAN cable* Optional handset or external telephone cable* Telephone cable* |
 |
3
When transporting the machine across a long distance, remove the toner cartridge and the drum cartridge.
Procedure for Replacing the Toner Cartridge
Procedure for Replacing the Drum Cartridge
Procedure for Replacing the Toner Cartridge
Procedure for Replacing the Drum Cartridge
4

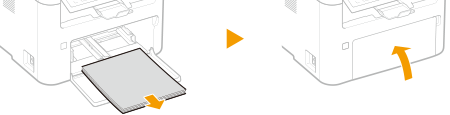

Open the front cover and remove any paper.
If the paper guides are extended, return them so that they fit in the drawer.
5
Close the front cover, paper stopper, and all similar parts, and then move the machine to a new location.
Check how heavy the machine is and carry it without straining. Main Unit

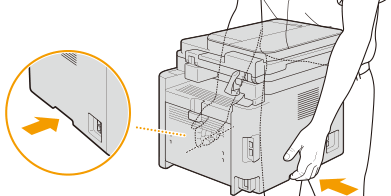

Hold the lift handles, and lift up the machine.
6
Carefully place the machine at the new installation site.
For information about how to install the machine after relocating it, see "Getting Started." Manuals and Their Contents
