Fax TX Result Report (imageRUNNER 1435iF+ Only)

You can print a report to check the result of a fax transmission. The report can be printed either each time a transmission is completed or only when a sending error occurs.
  <Output Reports>    <Report Settings>    <Fax TX Result Report>    Select the print setting

<Off>

Select if you do not want to print the report.

<On>

Select to print the report each time you send a fax.

<Only When Error Occurs>

Select to print the report only when a sending error occurs.

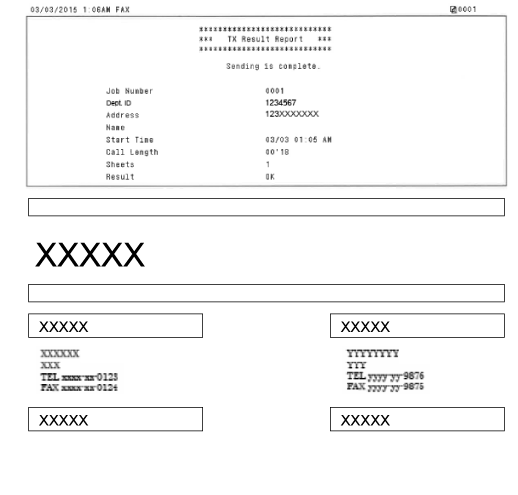

Example:

Department ID

The Department ID is shown when Department ID Management is enabled.

Result

"OK" indicates that the transmission was completed successfully while "NG" and three digits (an error code) indicates that the transmission failed (When an Error Code Appears).
NOTE
To print a part of a fax document on the report
When you select <On> or <Only When Error Occurs>, a part of a fax document can be included in the report. Set <Include TX Image> to <On>, and press .

3AYU-0C4
