Paper Drawer

Paper Drawer 1

Paper guide (Left guide)

Press the top part of the left guide and slide it.

Paper guide (Front guide)

Press the top part of the front guide and slide it.
Paper Drawer 2

Paper guide (Left guide)

Press the top part of the left guide and slide it.

Paper guide (Front guide)

Press the top part of the front guide and slide it.

Envelope Feeder Attachment A

Use this attachment when loading envelopes in the paper drawer. Loading Envelopes
Attaching the appropriate paper size label

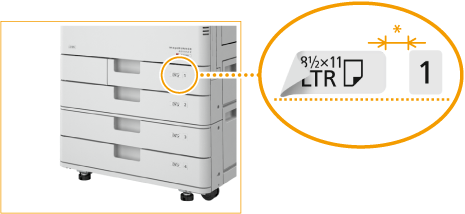

Attach the paper size label at the same height as the cassette number indicator, and approximately 1/4" (5 mm) to the left.
* Approximately 1/4" (5 mm)
Note that the paper size label may include paper sizes which are unavailable on the machine.
