Optional Equipment
By combining options, you can use functions more efficiently.

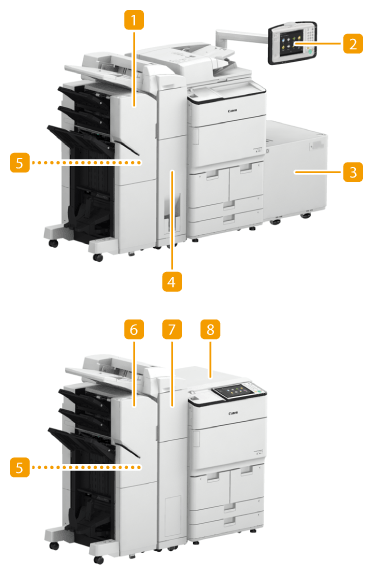

When the Staple Finisher-V/Booklet Finisher-V is installed
Booklet Finisher-V
You can perform collating, grouping, offsetting, stapling (Corner/Double/Booklet), and saddle folding with this option. In addition, you can manually bind with the stapler or bind without the stapler. Staple Finisher-V/Booklet Finisher-V/2/3 Hole Puncher Unit-A/2/4 Hole Puncher Unit-A (for the 230 V Machine Only)
Upright Control Panel-H
If you install "Upright Control Panel-H," you can adjust the position and angle so as to easily see the touch panel display. Control Panel
POD Deck Lite-C
If you install the "POD Deck Lite-C" to the machine, you have an additional large-capacity paper deck. POD Deck Lite-C/Paper Deck Unit-E
Document Insertion / Folding Unit-J
If you install the "Document Insertion / Folding Unit-J" in the "Staple Finisher-V" or "Booklet Finisher-V," you can fold output paper, and paper different from the original paper can be fed as a cover or insert pages. Document Insertion / Folding Unit-J
2/3 Hole Puncher Unit-A/2/4 Hole Puncher Unit-A (for the 230 V machine only)
If you install the "2/3 Hole Puncher Unit-A" or "2/4 Hole Puncher Unit-A (for the 230 V machine only)" in the "Staple Finisher-V" or "Booklet Finisher-V," you can punch holes in your printouts. Staple Finisher-V/Booklet Finisher-V/2/3 Hole Puncher Unit-A/2/4 Hole Puncher Unit-A (for the 230 V Machine Only)
Staple Finisher-V
You can perform collating, grouping, offsetting, and stapling (Corner/Double) with this option. In addition, you can manually bind with the stapler or bind without the stapler. Staple Finisher-V/Booklet Finisher-V/2/3 Hole Puncher Unit-A/2/4 Hole Puncher Unit-A (for the 230 V Machine Only)
Document Insertion Unit-P
If you install the "Document Insertion Unit-P" in the "Staple Finisher-V" or "Booklet Finisher-V," paper different from the original paper can be fed as a cover or insert pages. Document Insertion Unit-P
Printer Cover-H
Install this option if you use the machine as a printer. Printer Cover-H

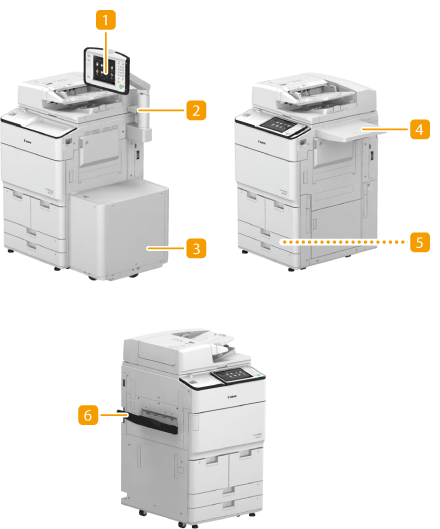

When Other Options are Installed
Upright Control Panel-H
If you install "Upright Control Panel-H," you can adjust the position and angle so as to easily see the touch panel display. Control Panel
Copy Card Reader
You can implement Department ID Management using the card reader. Copy Card Reader
Paper Deck Unit-E
If you install the "Paper Deck Unit-E" to the machine, you have an additional large-capacity paper deck. POD Deck Lite-C/Paper Deck Unit-E
Utility Tray-B
This option provides space for placing documents.
Tab Feeding Attachment Kit-B
Attach the "Tab Feeding Attachment Kit-B" to load tab paper into the paper drawers of the machine. This option can only be attached to the Paper Drawer 3 or 4, and holds only A4 tab paper.
Copy Tray-R
Install to use finish functions such as Collate, Group, and Rotate 90 Degrees. Copy Tray-R
NOTE |
For information on the combination of options that can be installed on the machine, contact your local authorized Canon dealer. Some of the settings may not be displayed depending on the configuration of optional equipment installed on the machine. |
