Configuring Printing Protocols and WSD Functions

Configure the protocols that are used for printing documents from a networked computer. For the print protocols supported by the machine, see Network Environment. This section describes the settings of LPD, RAW, IPP/IPPS, and WSD.
To use FTP
On how to configure settings, see the item below.
1
Start the Remote UI and log on in Management Mode. Starting Remote UI
2
Click [Settings/Registration].
3
Click [Network]  [TCP/IP Settings].
4
Configure printing protocols.

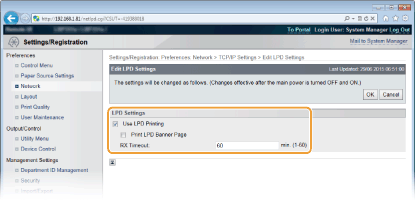

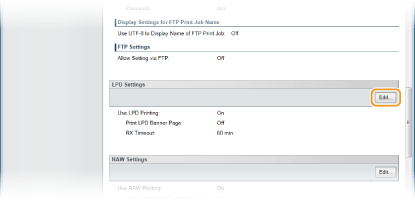

Configuring LPD settings

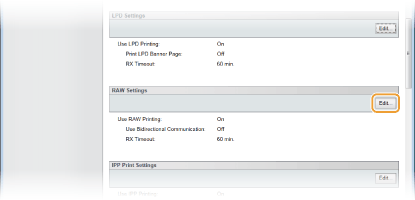

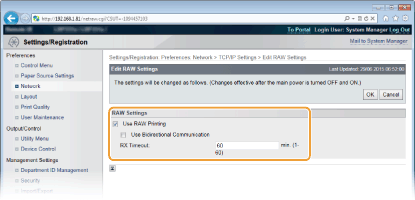

Configuring RAW settings

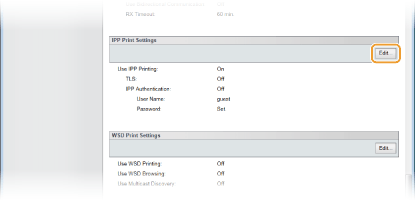

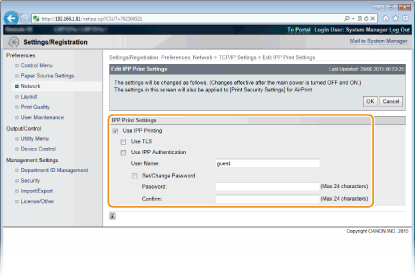

Configuring IPP/IPPS settings

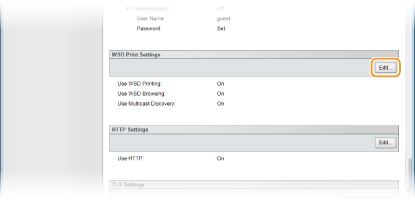

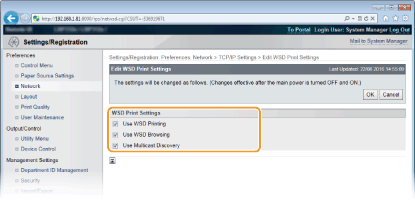

Configuring WSD settings
5
Perform a hard reset.
Click [Device Control], select [Hard Reset], and then click [Execute].
The settings are enabled after the hard reset is performed.
Using the operation panel
You can also enable or disable LPD print, RAW print, and IPP print from the setting menu of the operation panel.
LPD Settings
RAW Settings
IPP Print
WSD settings can also be accessed from the setting menu of the operation panel. WSD
Setup procedures on your computer
After the setting in the machine is completed, you may need to configure settings or install applications on your computer as well. Configure settings in your computer as necessary.
Configuring printer ports
Printing errors can occur when the IP address of the machine has been changed, or when a printer has been added via the Windows printer folder. These errors are typically caused by incorrect printer port settings. For example, an incorrect port number or port type may have been specified in the computer. In this case, you need to configure the printer port settings. Configuring Printer Ports
Setting up WSD network devices on Windows Vista/7/8/10
Use the WSD port to install the printer driver. For more information, see the manuals for the relevant drivers on the online manual website.
Enabling IPP/IPPS
Install the printer drivers by specifying the IPP port. Enabling IPP/IPPS
