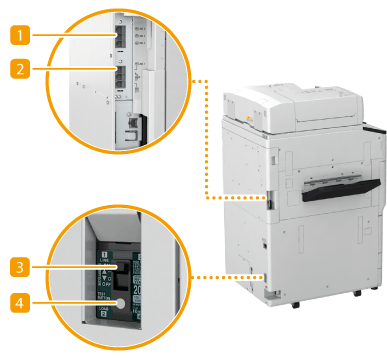

Back Side

Additional telephone line jack (LINE 2/LINE 3/LINE 4)

Use LINE 2 to connect the Super G3 2nd Line Fax Board to the machine, and use LINE 3 and LINE 4 to connect the Super G3 3rd/4th Line Fax Board to the machine. System Options

Telephone line jack (LINE 1)

Connect a telephone cable when connecting the machine to a telephone line.

Breaker

Detects excess current or leakage current. Inspecting the Breaker

Test button

Press this button to test the circuit breaker.
6FKR-01L
