Scan Features of the WSD Scan

This section describes how to use the scan features of the WSD Scan.
IMPORTANT
You can use the Network Scan function only in the following conditions:
Paper size:
A4
Color mode:
Color
Resolutions:
300 dpi (fixed setting)
File format:
BMP, JPEG, PNG, TIFF

1.

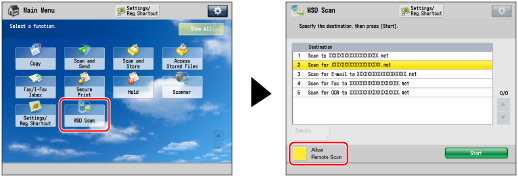

Press → [WSD Scan] → [Allow Remote Scan].
Set the scan function of the machine to online.
NOTE
If [WSD Scan] is not displayed on the Main Menu screen, press [Show All].
After pressing [Allow Remote Scan], if the operation conflicts with other operations from scan driver, the earlier operation will be received.
2.
Place your originals.
IMPORTANT
You cannot scan 2-sided originals even if you are using a feeder. Place 1-sided originals.
The available scanning size is up to A4. For example, if you set A3 originals, only A4 size is scanned.
NOTE
For instructions on placing originals, see "Alkuperäisten asettaminen."
3.
For Windows 7, click (Start) on a computer → [All Programs] → [Windows Fax and Scan].
For Windows 8.1, click or tap [] on the bottom left on the [Start] screen, and click or tap the [Windows Fax and Scan] tile on the [Apps] screen.
For Windows 10, select start menu → [All apps] → [Windows Accessories] → [Windows Fax and Scan].
NOTE
If [Windows Fax and Scan] is not displayed in Windows 7, follow the procedures below.
1.

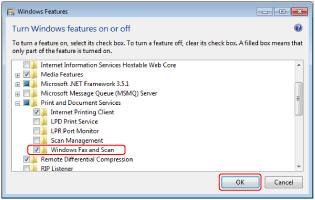

Click (Start) → [Control Panel] → [Programs] → [Turn Windows features on or off] → [Print and Document Services].
2.
Clear the check box for [Windows Fax and Scan] → click [OK].
3.
Restart the computer.
4.
Follow the same steps and select [Windows Fax and Scan] → click [OK].
For information on functions of the Windows operating system, see the manual provided with the operating system, or contact Microsoft.
4.

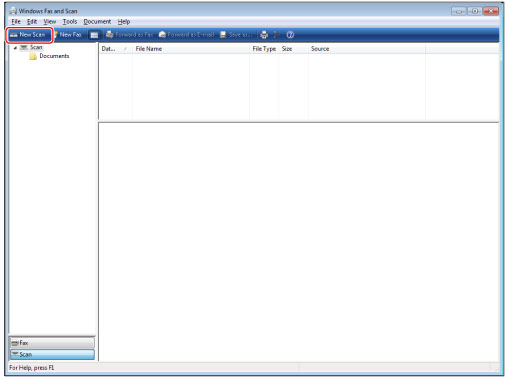

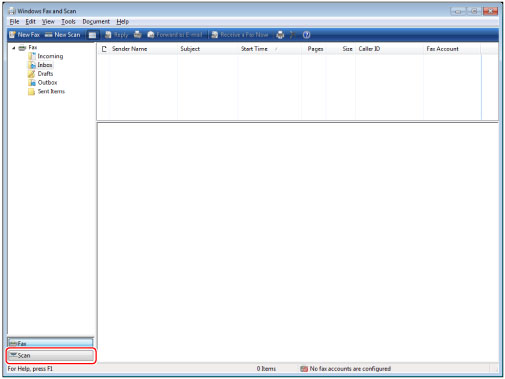

Click [Scan].
5.
Click [New Scan].
6.

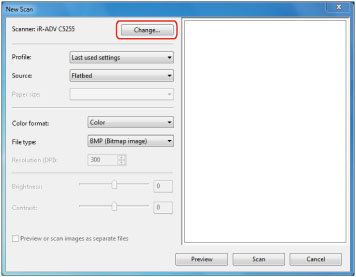

Click [Change] → select this machine as a scanner → click [OK].
7.

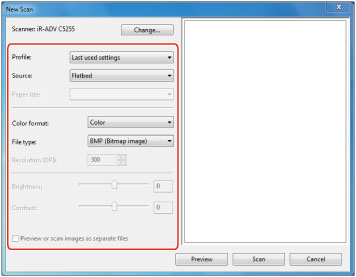

Specify each setting.
[Profile]:
If you scan text originals, select [Document], or select [Photo] for scanning photos.
[Source]:
If you are using a feeder, select [Feeder (Scan one side)], or select [Flatbed] if you are using the platen glass.
[Paper size]:
Select A4.
[Color format]:
[Color] is set.
[File type]:
Select from BMP, JPEG, PNG, and TIFF.
[Resolution]:
"300" is set.
8.

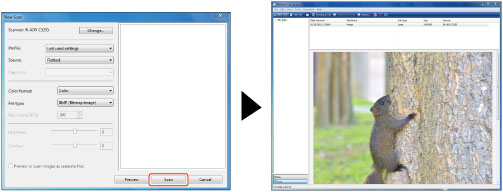

Click [Scan].
Scanned originals are displayed on the list.
NOTE
Scanned files are stored in [Scanned Documents] folder in [Documents].
If you click [Preview], the scanned file is displayed, but it is not stored in a computer.
