Relocating the Machine

When relocating the machine, do not attempt to move it yourself. Instead, contact your local authorized Canon dealer.
1
Turn OFF the machine and computer.
When you turn OFF the power, be sure to shut down the machine from the operation panel without using the power switch. Turning OFF the Power (Performing a Shutdown)
2

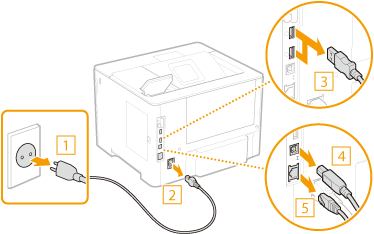

Disconnect the cables and cord from the machine in numerical order as in the illustration below.
Whether the cables with "*" are connected depends on your environment.
 Power plug
 Power cord
 USB device*
 USB cable*
 LAN cable*

3
When transporting the machine across a long distance, remove the toner cartridge. Replacing the Toner Cartridges
4

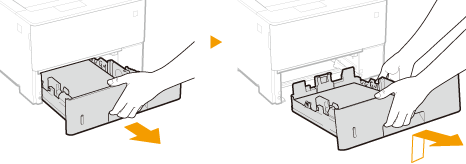

Pull out the paper drawer until it stops, and remove it while lifting the front side.
5
Close all the open covers, and move the machine to a new location.
The machine is heavy (Main Unit). Do not try hard to carry the machine.

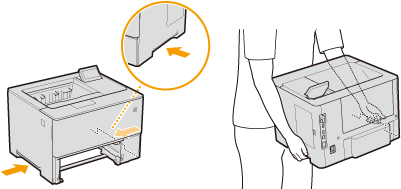

Position yourself toward the front side of the machine and hold the lift handles, then lift up the machine.
If the optional paper feeder is attached to the machine
Unlock the paper feeder before lifting the machine, and transport the paper feeder separately.

Front Side

Back Side
6
Carefully place the machine at the new installation site.
For information about how to install the machine after relocating it, see Getting Started. Manuals and Their Contents
5XRS-05J
