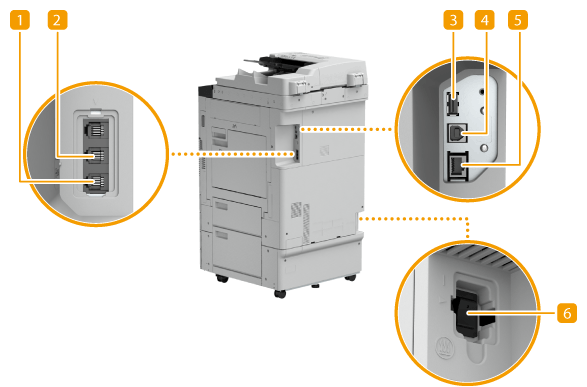

Back Side

Telephone line jack

Connect a telephone cable when connecting the machine to a telephone line. Connecting the Telephone Line

External telephone jack

Connect your telephone or answering machine. Connecting the Telephone Line

USB port (Back side of the machine)

Use this port to connect devices such as a third-party USB keyboard.
The USB port (back side of the machine) supports USB 2.0.

USB connector

Connect a USB cable when connecting the machine and a computer.
The USB connector supports USB 2.0.

LAN port

Connect a LAN cable when connecting the machine to a wired LAN router, etc. Connecting to a Wired LAN

Dehumidification switch

If paper in the paper drawer is found humid, set the dehumidification switch to "" side. Warming paper to dry it will prevent printing errors effectively.
6EL7-01Y
