Feeder

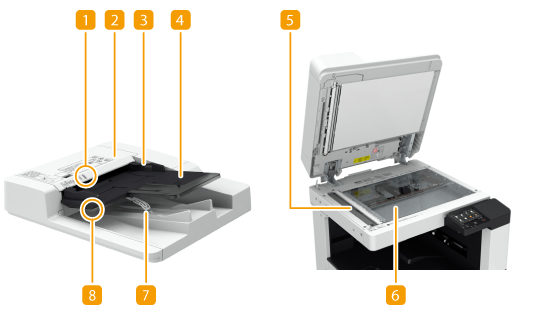

This section describes the name and use of each part of the feeder.
The feeder is optional.

Original set indicator

Lights up when originals are placed in the original supply tray.

Feeder cover

Open this cover when removing paper jammed in the feeder. Paper Jams in the Feeder

Slide guides

Adjust these guides according to the width of an original.

Original supply tray

Originals placed here are automatically fed into the feeder. When two or more sheets are loaded, originals can be scanned continuously. Placing Originals

Document feed scanning area

Originals placed in the feeder are scanned in this area.

Platen glass

When scanning books, thick originals, thin originals, and other originals that cannot be scanned using the feeder, place them on the platen glass. Placing Originals

Original output tray

Scanned originals are output here.

Original output indicator

If you place originals in the feeder while originals for another job remain in the original output tray, the indicator blinks to notify the user that originals remain.
If a thick original such as a book or magazine is placed on the platen glass, do not press down hard on the feeder.
Do not place any objects in the original output area. Doing so may cause damage to the originals.
Regularly clean the feeder and platen glass in order to obtain proper print results. Regular Cleaning
