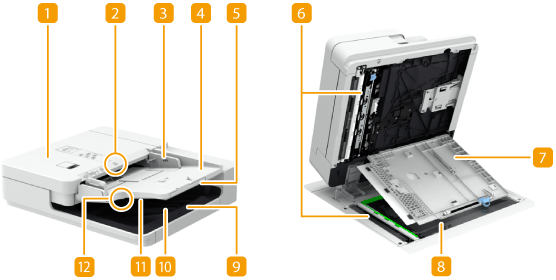

Feeder

Feeder cover

Open this cover when removing originals jammed in the feeder. Paper Jams in the Feeder

Original set indicator

Lights up when originals are placed in the original supply tray.

Slide guides

Adjust these guides according to the width of an original.

Original supply tray

Originals placed here are automatically fed into the feeder. When two or more sheets are loaded, originals can be scanned continuously. Placing Originals

Original supply tray extension

Pull out this tray when loading a large-sized original.

Document feed scanning area

Originals placed in the feeder are scanned in this area.

Document feed scanning area cover

Open this cover when cleaning the document feed scanning area. Main Unit Maintenance

Platen glass

When scanning books, thick originals, thin originals, and other originals that cannot be scanned using the feeder, place them on the platen glass. Placing Originals

Original output tray extension

Pull out this tray when scanning large-sized originals to prevent them from dropping over the edge of the feeder. The tray can be extended to two different lengths depending on the size of original.

Original output tray

Scanned originals are output here.

Original retainer

Holds down originals to support outputting originals neatly.

Original output indicator

If you place originals in the feeder while originals for another job remain in the original output tray, the indicator blinks to notify the user that originals remain.
If a thick original such as a book or magazine is placed on the platen glass, do not press down hard on the feeder.
Do not place any objects in the original output area. Doing so may cause damage to the originals.
Regularly clean the feeder and platen glass in order to obtain proper print results. Regular Cleaning
