Connecting to a Wired LAN

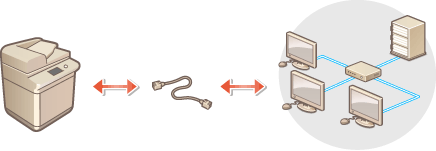

Connect the machine to a computer via a router using a LAN cable.
A router and LAN cable are not included with the machine, so please prepare them separately.
The machine supports 1000BASE-T/100BASE-TX/10BASE-T Ethernet.
To make a connection using 100BASE-TX/10BASE-T, use a category 5 twisted pair cable. It is recommended to use an enhanced category 5 twisted pair cable to make a connection using 1000BASE-T.
If devices supporting 1000BASE-T, 100BASE-TX and 10BASE-T are used together, a device (such as a switching hub) supporting all of the Ethernet types you use is necessary. For more information, contact your dealer or service representative.
1
Connect the machine to a router using a LAN cable.
Push the connector in until it clicks into place.

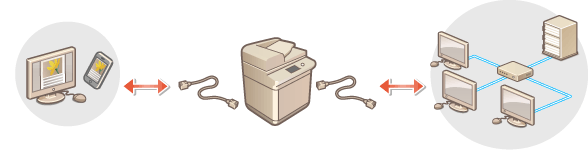

Connecting to a Wired LAN for the Sub Line
When <Wired LAN + Wired LAN> is selected in <Select Interface>, connect the wired LAN for the sub line. <Select Interface>
1
Connect the USB-LAN adapter to the USB port of the machine (located towards the back on the right side of the machine). Parts and Their Functions
Multiple USB-LAN adapters cannot be connected.
For information on the USB-LAN adapters that can be used, contact your dealer or service representative.
98XF-035
