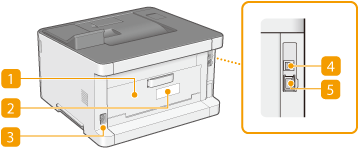

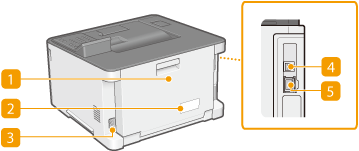

Back Side
LBP633Cdw  | LBP631Cw  |
Rear cover
Open the rear cover when clearing paper jams. For more information, see "Troubleshooting (FAQ)" on the online manual website.
Rating label
The label shows the serial number, which is needed when making inquiries about the machine. For more information, see "Troubleshooting (FAQ)" on the online manual website.
Power socket
Connect the power cord.
USB port (for computer connection)
Connect a USB cable when connecting the machine and a computer.
LAN port
Connect a LAN cable when connecting the machine to a wired LAN router, etc. Connecting to a Wired LAN
