Registering User Groups
Register user groups. User group address lists can be shared between registered user groups.
1
2
Click [Settings/Registration] on the portal page.
Remote UI Screen3
Click [User Management]
![](./images/book_images/b_in_arrow_right.gif)
[Authentication Management]
![](./images/book_images/b_in_arrow_right.gif)
[User Group Management].
4
Click [Add Group (Local Device Users)...] or [Add Group (Other Users)...].
Select [Add Group (Other Users)...] if Server Authentication is set.

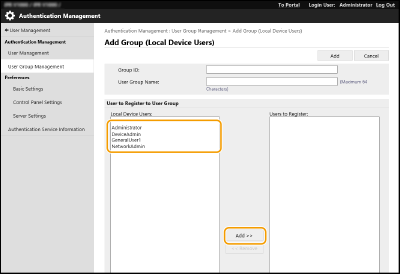

Adding Groups to a Local Device![](./images/global_images/1T0002134966/g_ne_toggle_open.gif)
1 | Enter the group ID and user group name. |
2 | Select the users to include in the user group, and click [Add >>]. |
3 | Click [Add]. |
Adding Groups to an Authentication Server![](./images/global_images/1T0002134966/g_ne_toggle_open.gif)
1 | Enter the group ID, user group name, attribute name, and attribute value. |
2 | Click [Add]. |
For [Attribute Name:], enter the "Attribute Name" (such as company name, department or position) managed by the server authentication destination (ActiveDirectory, LDAP server, Microsoft Entra ID, etc.). For example, enter "company" or "department".
For [Attributes:], input the values you wish to extract as a group from the values listed for "Attribute Name" in the server. For example, you may enter "Company A" for the company name, and "Sales 1" for the department name.
