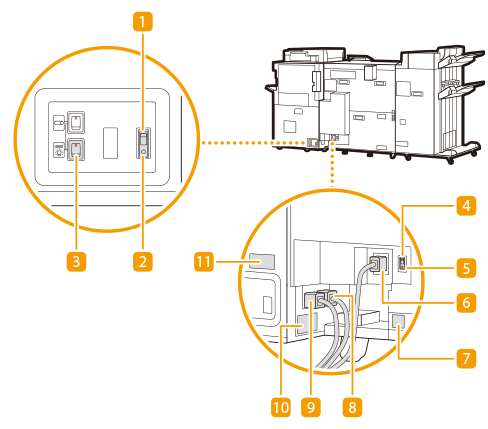

Back Side
Breaker (Marking engine)
Detects excess current or leakage current.
Test button (Marking engine)
Press this button to periodically test the circuit breaker.
Dehumidification switch
If paper in the paper drawer is found humid, set the dehumidification switch to "|" side. Warming paper to dry it will prevent printing errors effectively.
Breaker (Fixing station)
Detects excess current or leakage current.
Test button (Fixing station)
Press this button to periodically test the circuit breaker.
Sub power cord 2
Sub power cord on the fixing station side.
Rating plate (Sub power cord 2)
Indicates the rating for the sub power cord 2.
Main power cord
Sub power cord 1
Sub power cord on the marking engine side.
Rating plate (Sub power cord 1)
Rating plate for the sub power cord 1.
Rating plate (Main power cord)
Rating plate for the main power cord.
