Portal TopManual topAbout the MachineSetting UpBasic OperationsPrintingScanningFaxingCopyingLinking with Mobile DevicesSecurityManaging the MachineSettings Menu ItemsMaintenanceCleaning the MachineCleaning the Surface of the MachineCleaning inside the MachineCleaning the Platen GlassCleaning the FeederCleaning the Fixing AssemblyReplacing ConsumablesMoving the MachineTroubleshootingAppendixIf the following symptoms are observed when using the feeder, remove any adhering graphite powder or dust by wiping the rollers inside the feeder and the original scanning area of the feeder. Originals become dirty Originals frequently jam Printouts appear smudged after scanning, copying, or sending faxes |
MF269dw II | MF266dn II / MF264dw II | ||
 |  |
) inside the feeder and surrounding areas.MF269dw II | MF266dn II / MF264dw II | ||
 |  |
), take care not to bend the plastic.
If the problem persists

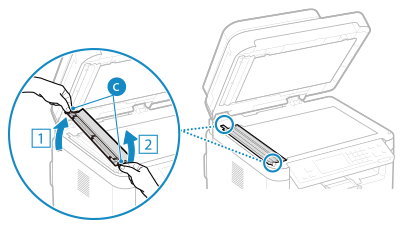

) and wipe it.1 | Hold the tabs (  ) at both ends of the transparent plastic part, and remove the plastic part by gently lifting the rearward end first. The plastic part is rather damageable. When removing it, be careful not to bend it. |
2 | Wipe the original scanning area (  ). |
3 | Wipe the back side of the transparent plastic part.  |
4 | Allow the parts to fully dry. |
5 | Place the transparent plastic part back into position. Make sure of the proper orientation, then hold the tabs and place the plastic part back into position by gently lowering the frontward end first. |
