Front Side

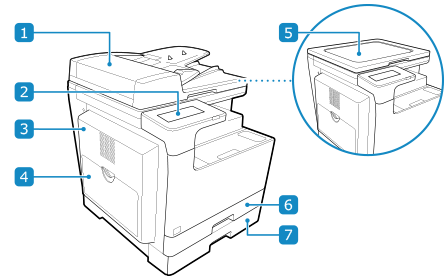

imageRUNNER 2224N
When the DADF-AY and Cassette Feeding Module-AK are attached:

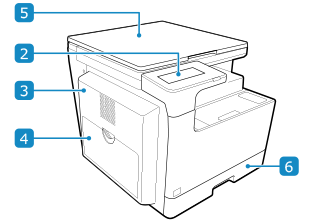

imageRUNNER 2224

Feeder

You can place two or more sheets of originals in the feeder. The placed originals are fed and scanned one by one automatically. Feeder

Control panel

Use the display and keys to operate the machine and confirm the operations and status. Control Panel

Cover on the left side of the main unit

Open this cover when clearing a paper jam inside the machine. Paper Jams inside the Machine and in a Paper Source

Multi-purpose tray

To temporarily use paper not loaded in the paper drawer, load it in the multi-purpose tray. Multi-purpose Tray

Platen cover

Secures the originals placed on the platen glass.

Paper drawer 1

Load paper you usually use into the paper drawer. Paper Drawer

Paper drawer 2

Load paper you usually use into the paper drawer. Paper Drawer

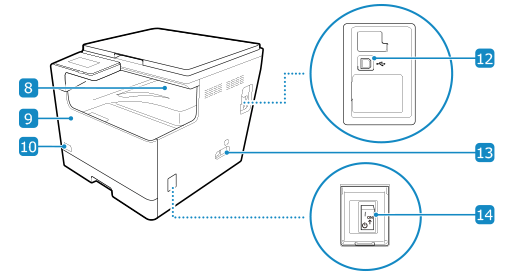

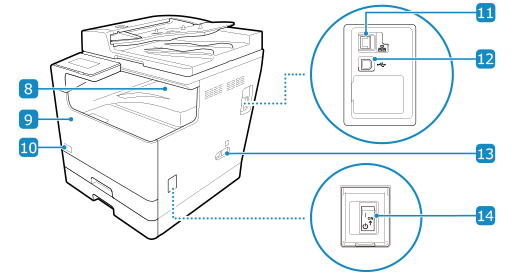

Output tray

Printed and copied paper is ejected to the output tray.

Front cover

Open the front cover when replacing toner cartridges.

Toner Code

This code indicates the type of genuine toner that can be used with the machine. Use toner with a code that includes the same letters as the code on the front cover of the machine.

LAN port

You can connect the machine to a wired LAN using a commercial Ethernet cable connected to the LAN port.

USB port (for computer connection)

You can connect a computer to the USB port using a commercial USB cable.

Power socket

Connect the power cord to the power socket.

Power switch

Turns the power of the machine ON and OFF. Turning ON and OFF the Machine
To ensure efficient use of the machine, regularly clean the surface and platen glass.
Cleaning the Surface of the Machine
Cleaning the Platen Glass
If the following symptoms occur when using the feeder, clean the feeder: Cleaning the Feeder
Originals become dirty
Originals frequently jam
Printouts appear smudged after scanning or copying
